MC-SWPS

MC-SWPS

1,53 €
1,64 €

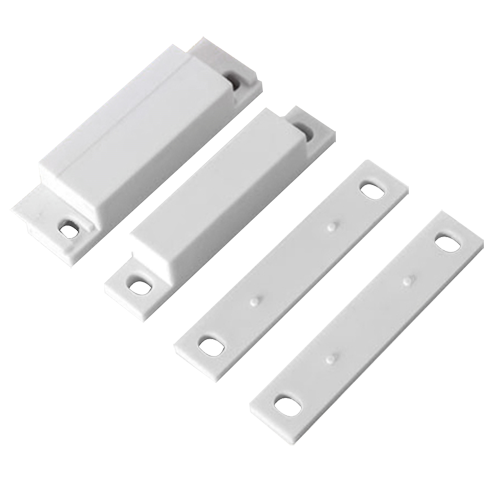

Magnetic contact - Suitable for installation in wood - Reed Detection Technology - Terminal connection system - Resistance to mechanical and electrical shocks
Description
  • Magnetic surface detector
  • Reed Technology
  • Suitable for installation in wood
  • Resistance to mechanical and electrical shocks
  • Terminal connection system
Specifications
TechnologyReed
PowerMedium power
Maximum detection distanceUp to 20mm depending on the material where it is installed
MaterialPlastic
CableConnector for 2 cables
MagnetNeodymium
Resistance to mechanical shocksUp to 20KgS
Electrical parameters100 VDC/VAC max, 500mA, 10W
DimensionsDetector: 63.5 (W) x 13 (H) x 19 (D) mm
Magnet: 63.5 (W) x 12.8 (H) x 12 (D) mm
Contents
  • Magnetic contact
  • User instructions
