- Magnetic contact
- User instructions
MC-SWPS-N
4,58 €
4,93 €
4,93 €

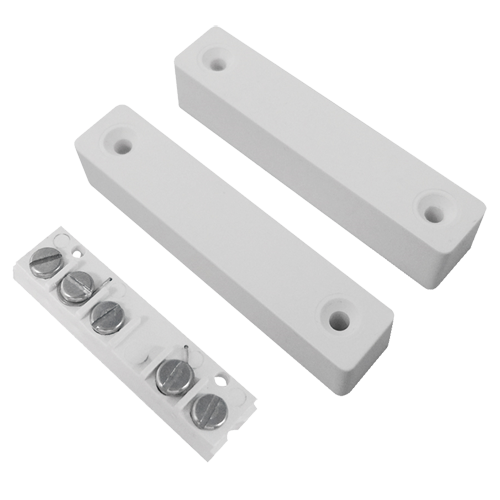

Magnetic contact - Suitable for installation in wood - Reed Detection Technology - 5 Terminal connection system - Resistance to mechanical and electrical shocks
Description
- Magnetic surface detector
- Reed Technology
- Suitable for installation in wood
- Resistance to mechanical and electrical shocks
- 5 Terminal connection system (possibility of repeating the alarm signal or adding another signal as a tamper)
Specifications
| Technology | Reed |
| Power | Medium power |
| Maximum detection distance | Up to 20mm depending on the material where it is installed |
| Material | Plastic |
| Cable | Connector for 5 cables |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 16KgS |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Dimensions | Detector: 64.6 (W) x 11.5 (H) x 13.1 (D) mm Magnet: 64.6 (W) x 11.5 (H) x 13.1 (D) mm |
