- - Mini-camera
- - Video and power connection cable
- - AC/DC Adapter 12V / 600mA
- - User instructions
MC221J
29,05 €
31,24 €
31,24 €

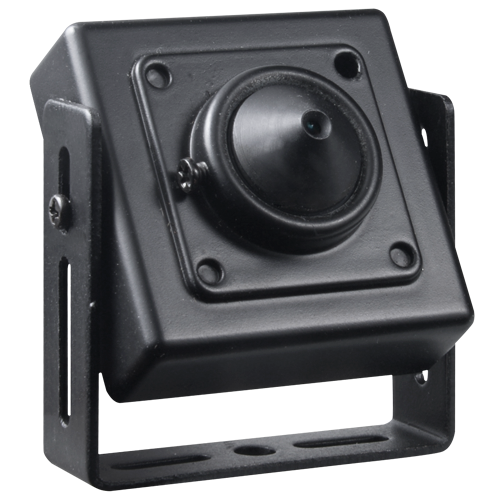

Wired mini-camera - 1/3" Sony© Super HAD CCD II - Resolution 600 TVL - Bracket integrated - 0.3 Lux / F2.0 - 3.7 mm Pinhole Lens
Description
Wired miniature camera.
Sony© 1/3" 960H Super HAD CCD II Sensor (model ICX663AKA) & Nextchip© DSP (model NVP2040), and a resolution of 600 TVL. Fixed lens of 3.7 mm pinhole with a diagonal range of vision of 79º. Minimum illumination of 0.3 Lux. Video connection via BNC connector
Metal housing, which makes it more robust against external factors. Ideal for discreet high quality recordings thanks to its high resolution.
Specifications
| Image sensor | 1/3" Sony© 960H Super HAD CCD II |
| DSP | Nextchip NVP2040 |
| Resolution | 600 TVL |
| Video output | 1 Vp-p 75 Ω / BNC |
| Minimum illumination | 0.3 Lux / F2.0 |
| S/N ratio | > 48 dB |
| Lens | 3.7 mm (79º) Pinhole |
| Power | DC 12 V / 150 mA |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 25 (H) x 25 (W) x 14 (D) mm |
| Weight | 24 g |
