MC304D

33,65 €
36,18 €
Ultraminiature camera - 1/4" Aptina© 960H CMOS MT9V139 - Extension cable 0.5 metres - Wide angle lens 1.8 mm - 0.1 Lux / F2.0 - 14 x 14 x 20 mm, 27 g
Description

Ultra-miniature wired camera, high quality and low light, with microphone and wide angle lens.

Consisting of a sensor 1/4" Aptina© 960H CMOS (model MT9V139) with a resolution of 800 TVL. It has external microphone, which incorporates audio to the image. Fixed lens of 1.8 mm with a diagonal vision field of 94º. Minimum illumination of 0.1 Lux. Day/Night function sensitive to infrared lighting. Connecting video and audio via RCA connector.

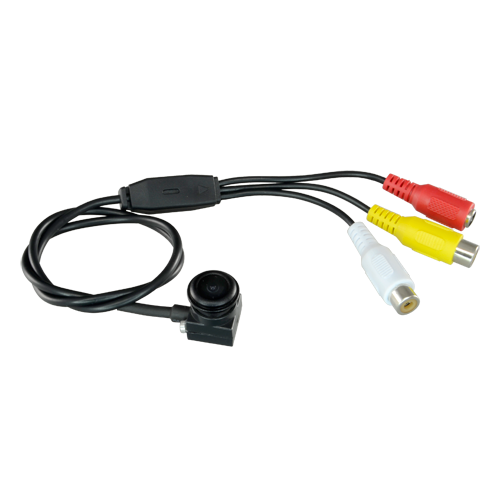

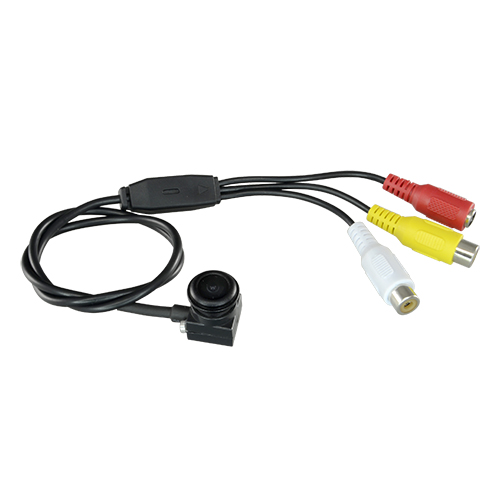

Incredible size for a high quality camera that is composed of three parts: First of all the lens with a straight head and small dimensions of only 14 x 14 x 20 mm; secondly the electronics, separated by a flexible cable of 500 mm; and finally the audio, video and power connectors.

The camera does its job with total discretion given the possibility to hide it anywhere. Finally, the microphone is integrated in the camera head.

Specifications
Image sensor1/4" Aptina© 960H CMOS (model MT9V139)
DSPIntegrated
Resolution800 TVL
Video output1 RCA
Audio output1 RCA
Minimum illumination0.1 Lux / F2.0 (IR sensitive)
Lens1.8 mm (D:94º)
PowerDC 12 V / 90 mA (DC 5~15V)
Temp. operation-10º C ~ +50º C
Dimensions14 (H) x 14 (W) x 20 (D) mm
Weight27 g
Contents
  • - Ultra miniature camera

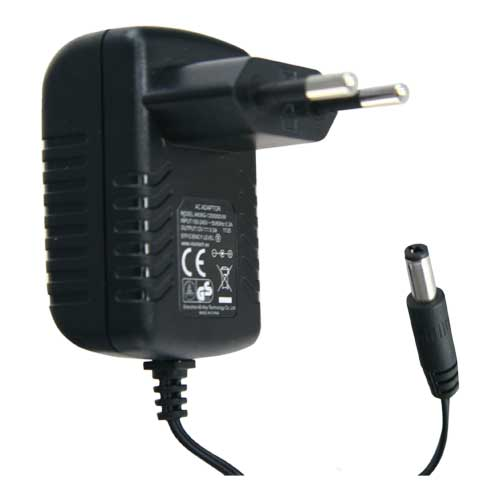

  • - AC/DC Adapter 12V / 600mA
