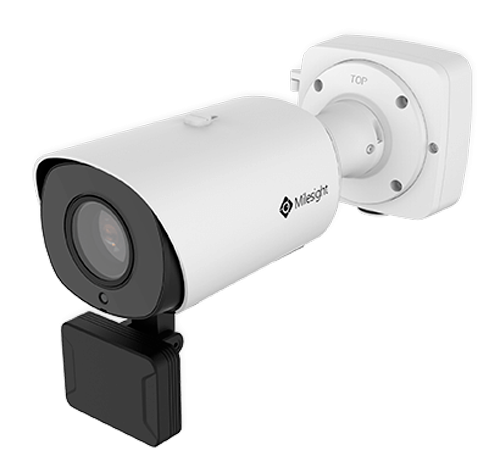

MS-C5366-X12LVPC

MS-C5366-X12LVPC

717,55 €
771,56 €
LPR IP Camera 5 Mpx with Speed Camera Radar - 1/2.8" Progressive Scan CMOS - LPR function, Integrated license plate reading - 5.3~64mm motorised auto-focus lens - IR LEDs Range 180 m - Speed detection up to 200Km/h
Description
  • Milesight
  • IP camera with license plate recognition
  • 1/2.8" Progressive Scan CMOS
  • 5 Megapixel (2592x1944)@25FPS
  • 5.3~64 mm motorised varifocal autofocus lens
  • 0 Lux
  • IR Range 180 m
  • Number plate reading up to 200km/h
  • Monitors upto 4 lane(s)
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100/1000M BaseT
  • Alarms
  • Alert in case of detection of license plate Not Allowed
  • PoE+ IEEE802.3at
  • IR Cut
  • WDR (140dB)
  • Recording and storage of license plates on MicroSD card
  • Weatherproof IP67
  • Vandal proof IK10
  • Overvoltage 4000V
Specifications
BrandMILESIGHT
Image sensor1/2.8" Progressive Scan CMOS
Maximum resolution5 Megapixel (2592x1944)
Main Stream rate25fps@(2592x1944), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Extra Stream rate25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Rate 3rd Stream25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
CompressionH.265+ / H265 /H.264+ / H264 / MJPEG
Bitrate16 Kbps ~ 16 Mbps (CBR / VBR)
Lens5.3~64mm Motorised auto-focus
FOVH: 57°~4°; V: 44º~1º; D: 69°~5°
IRIS ControlAuto
Minimum illuminationColour: 0.005Lux@F1.2
Colour: 0.008Lux@F1.6
B/W: 0 Lux with IR ON
Infrared Light180 m
Day / NightDay / Night / Auto / Customizable / Programmable
Image improvementsWDR (140 dB), BLC, HLC, 2D DNR, 3D DNR, Defog Function, AWB, EIS, IP Address Filtering, AGC, Anti Flicker, Corridor Mode, Deblur, Watermarking
ROIUp to 8 Areas
License Plate RecognitionUp to 4 detection zones
Maximum speed for detection: 200 Km/h
Intelligent traffic detectionLicense Plate Recognition, License Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Recognition and Traffic Flow Detection
List of license platesAllowed / Not Allowed / Visitors
(max. 10000 license plates) to activate different actions
Trigger EventMotion Detection, License Plate List, Exceptions, Alarm Entry
Event ActionUpload Image to FTP, SMTP, MicroSD Card, Enable Alarm Output, SIP Phone, HTTP Notification
Speed Radar 3DUp to 4 detection lanes
Up to 32 targets
Detection speed: ± 5 ~ 200 Km/h
Detection accuracy: ± 0.36 Km/h
Detection distance up to 90m
Detection distance accuracy: ±0.4m
Measuring angle accuracy: ±0.5º
Installation height 2~7m
Internal memoryMicroSD card, Max 256 GB (required for LPR function)
Alarms1/1
Audio1/1
Audio CompressionG.711/AAC/G.722/G.726
Two-way AudioSupport
Audio Bit Rate16~256Kbps
SIP/VoIPYes. Voice and Video over IP
Communication InterfaceEthernet 10/100M BaseT | 1 RS485
Remote accessWeb Browser, Smartphone App and Milesight Central Management System Software
InteroperabilityONVIF (G/Q/S/T Profile)
PowerDC 12 V / MAX 8W (13W IEEE802.3at with IR), PoE+ [%VAR%]
Degree of protectionWaterproof IP67, Vandal resistant IK10, Over voltage 4000V
Temp. operation-40º C ~ +60º C
Dimensions134 (W) X 126 (H) X 320 (F) mm
Weight1447 g
Contents
  • MILESIGHT LPR IP Bullet Camera
  • Installation material
  • CD with software and instructions
  • Template for easy installation
  • Junction box
