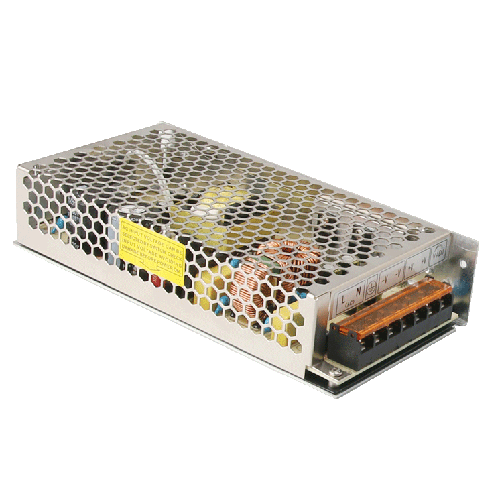

- Power Supply DC 12 V / 15 A
PD-180-12
27,53 €
29,60 €
29,60 €
Switching Power Supply - Input AC 100~240 V - DC Output 12 V / 15 A (180W) - Adjustable output 11,5~13,9 V - Protected against surges - and current peaks
Description
AC/DC switchable power supply. Precise voltage stabilization. Grid casing for better heat dissipation.
Its input is connected directly to alternating current (AC 100~240 V) and provides continuous DC power 12 V / 15 A. With two outputs. The voltage can be adjusted manually in a range between 11,5 V ~ 13,9 V.
It has protection systems against short circuit, overvoltage and current peaks to ensure a problemless performance of the installation.
Specifications
| Input voltage | AC 100~240 V |
| Input frequency | 47~63 Hz |
| Output Voltage | DC 12 V (typically) |
| Output voltage range | Adjustable 11,5 V ~ 13,9 V |
| Output power | 180W |
| Output current | 15 A |
| Working temperature | -20º C ~ +55º C |
| Dimensions | 199 x 98 x 42 mm |
| Weight | 580 g |
