- Power supply DC 12 V 2,5A

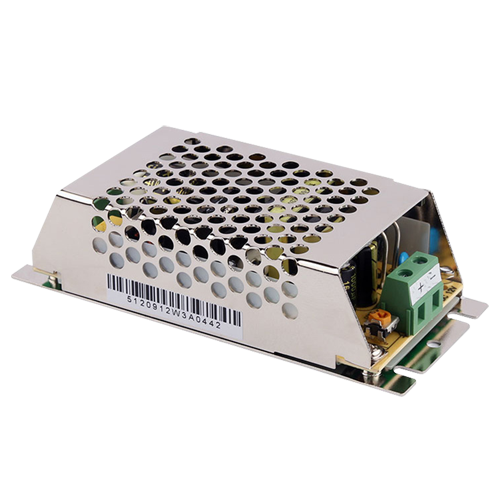

PD-30-12
6,58 €
7,07 €
7,07 €
Switching Power Supply - Input AC 100~240 V - DC Output 12 V / 2,5 A (30W) - Adjustable output 11,4~12,6 V - Protected against surges - and current peaks
Description
AC/DC switchable power supply. Precise voltage stabilization. Grid casing for better heat dissipation.
Its input is connected directly to the alternating current (AC 100~240 V) and provides continuous DC power 12 V 2,5 A. It has an output. The voltage can be adjusted manually in a range between 11,4 V ~ 12,6 V.
It has protection systems against short circuit, overvoltage and current peaks to ensure a problemless performance of the installation.
Specifications
| Input voltage | AC 100~240 V |
| Input frequency | 47~63 Hz |
| Output Voltage | DC 12 V (typically) |
| Output voltage range | Adjustable 11,4 V ~ 12,6 V |
| Output power | 30W |
| Output current | 2,5 A |
| Working temperature | -10º C ~ +45º C |
| Dimensions | 115 x 50 x 30 mm |
| Weight | 220 g |
