Contents
- - Curtain-type PIR detector

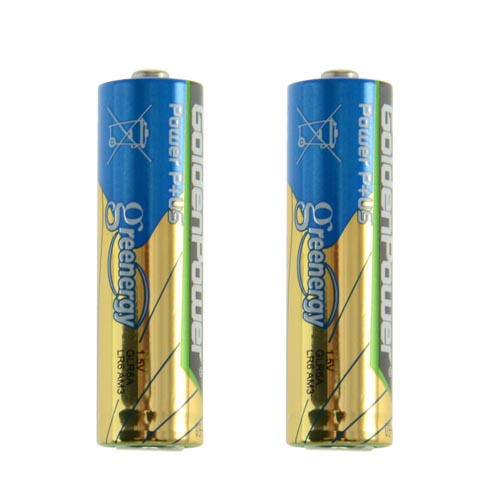

- - 2 AAA batteries

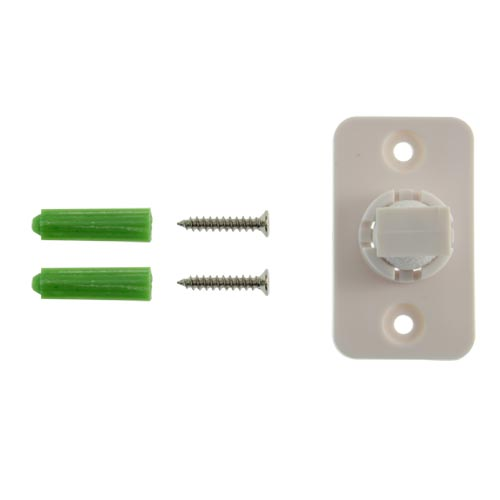

- - Mounting bracket

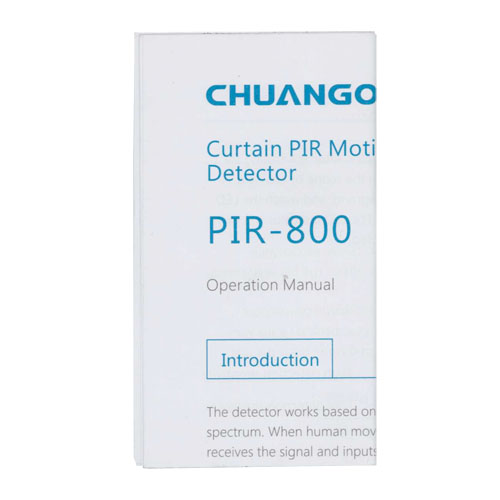

- - Instruction Manual

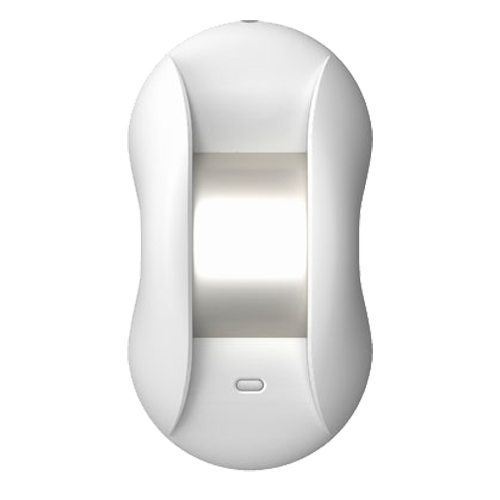

PIR motion detector curtain type, wireless, to the alarm system. Can detect any intrusion to occur in front of the detector, sending an alert to the panel that will trigger the alarm.
This detector has the peculiarity that it creates a "virtual curtain" in front of it, with dimensions of 5 meters long, 3.6 meters in height and angle 15º (1,3 final meters). Any object or person that passes through this virtual curtain will be detected by the PIR. It is particularly suited to very effectively cover windows, skylights, room entrances, etc..
Power | 2 AAA batteries of 1,5 V |
Detection distance | 5 meters |
Angle of the detection curtain | 15º |
Transmission distance | ≤ 80 m (in open space) |
Frequency | 433 MHz (± 75 KHz) |
Housing material | ABS plastic |
Temp. operation | -10º C ~ 50º C |
Relative humidity | ≤ 80% (without condensation) |
Dimensions | 88 (H) x 48 (W) x 33 (D) mm |
Bracket dimensions | 52 (H) x 30 (W) x 11,6 (D) mm |
