RACK-4U

94,29 €
101,39 €
Rack cabinet for wall - Up to 4U rack of 19" - Up to 60 kg load - With ventilation and cable passage - Fan included - Multiple connector of 6 power points included
Description

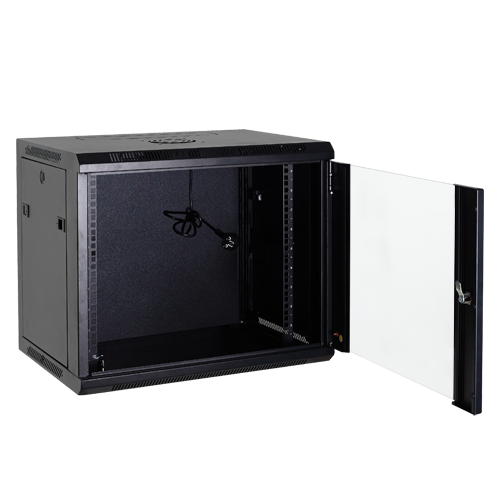

Rack cabinet for wall installation. Capacity for 4U rack of 19".

Designed for wall mounting, this rack cabinet rack is the perfect solution to safeguard electronic equipment, such as servers, switches, patch panel or video recorders. Its standardized dimensions according to the specification EIA-310 allow it to be compatible with equipment of any brand or manufacturer.

Load capacity of 60 Kg. The internal height allows to place devices to complete 4U rack 19".

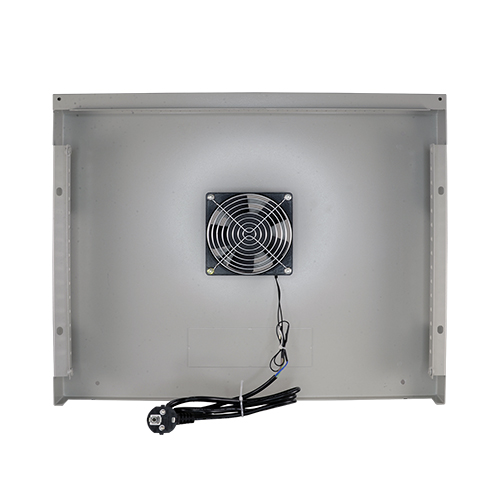

Additionally, it includes a 120 mm fan for correct cooling and a 1U power strip rack with 6 sockets.

Dual section structure highly resistant, made of cold rolled steel SPCC of 2,0 mm thick profiles and with light plates of 1,0 mm for the other elements. Slotted front and side areas to optimize ventilation. Access precut for the cable passage. The side panels are removable for easy access to the devices and have a hole to install a cylinder lock (not included). Front door with large tempered glass viewer, with opening of 180º and cylinder lock with 2 keys (included). It includes necessary screws, nuts and bolts for installation of the devices in the rack. Suitable for indoor, degree of protection IP20.

Specifications
Rack typeWall closet
Interior dimensions280 (H) x 543 (W) x 420 (D) mm
External dimensions315 (H) x 600 (W) x 450 (D) mm
Storage capacityUp to 4U rack of 19"
Maximum load60 kg
Degree of protectionIP20
Weight15 kg
AssemblyYes
Contents
  • - Rack 4U
  • - Built-in fan

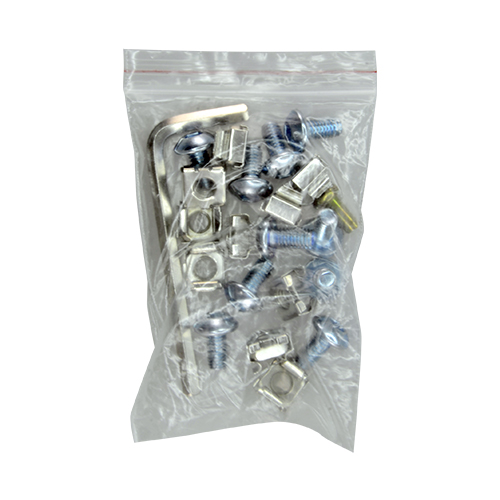

  • - Installation accessories

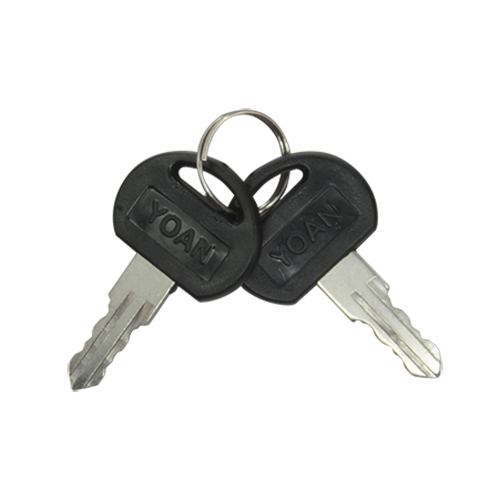

  • - 2 Keys

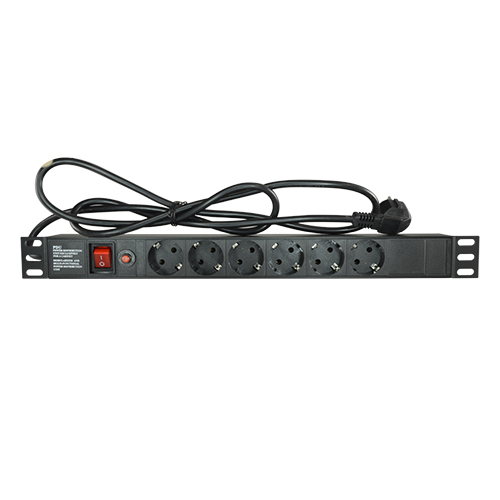

  • - 1U rack ( 6 sockets)
