- Bobbin of cable
RG59P-100-LSZH
42,98 €
46,22 €
46,22 €

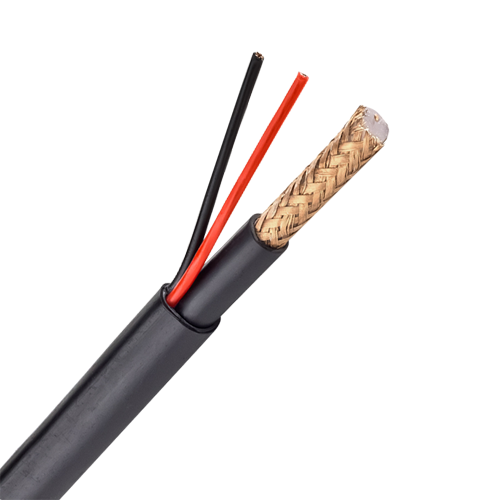

Combined Cable - RG59 + power supply - Bobbin of 100 meters - Black cable insulation - LSZH jacket - Compatible with connector CON100HD
Description
- Bobbin of cable
- 100 m
- Combined: RG59 & 2 Power cable(s) RG59: Copper interior conductor 0.81 mm
- PE Solid insulation 3.7 mm
- Twisted CCA exterior conductor 128/0.12 mm
- LSZH cover 6.0 mm
- Specifications 2 x Power supply cables: CCA interior conductor 7/0.4 mm
- Individual LSZH insulation 1.8mm (red/black) Exterior LSZH jacket 9.0mm
- Compatible with the connector CON100HD
Specifications
| Length | 100 m |
| Interior conductor RG59 | Copper 0.81 mm |
| Isolation RG59 | Solid 3.7mm PE |
| Exterior conductor RG59 | CCA twisted 128/0.12 mm |
| Cover RG59 | LSZH 6.0mm |
| Interior DC conductor | CCA 7/0.4 mm |
| DC isolation | LSZH 1.8 mm (black/red) |
| Combined insulation | LSZH 9.0mm |
