Contents
- Video converter
- Mini USB power cable
- User instructions

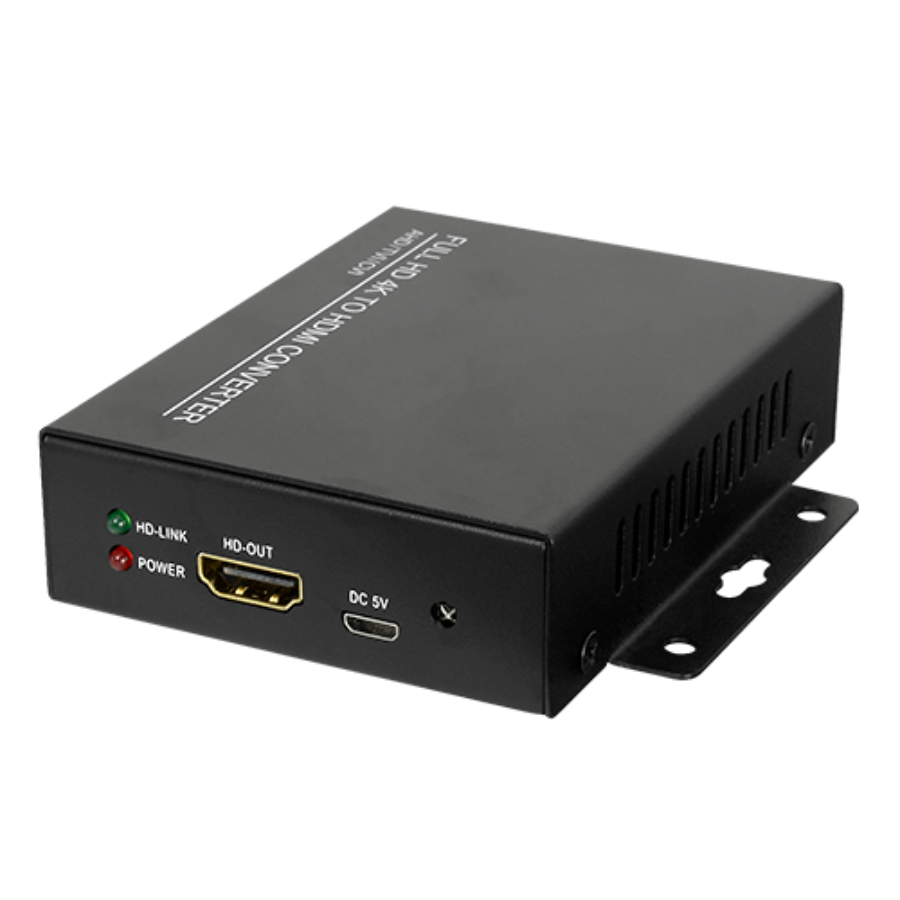

SF-BNC4K-HDMI
51,05 €
54,89 €
54,89 €
BNC to HDMI Converter - 1 BNC input - 1 HDMI 1080p output - 1 BNC output (loop with BNC in) - Output resolution 1080p - Video input resolution up to 8 MP
Description
- Safire
- BNC to HDMI Converter
- 1 BNC input
- 1 BNC output
- 1 HDMI 1080p output
- Input resolution up to 8 MP
- Input format TVI / CVI / AHD / CVBS
- 75 ohm and high impedance
- Possibility of loop between BNC
Specifications
| Brand | Safire |
| Input | 1 BNC input |
| Output | 1 HDMI ouput / 1 BNC output |
| Loop between BNCs | Support |
| Input resolution | 8 Mpx (HDTVI) / 8 Mpx (HDCVI) / 5 Mpx (AHD) / 1080p (CVBS) |
| Output resolution | HDMI 1080p |
| Audio | No |
| Functions | Test of analog cameras up to 8 MP |
| Output Impedance | 75 ohm / Hi-Z |
| Power | 5VDC / 2 at max. |
| Working conditions | -25 ℃ ~ 75 ℃ |
| Dimensions | 20 (H) x 55.0 (W) x 66 (D) mm |
