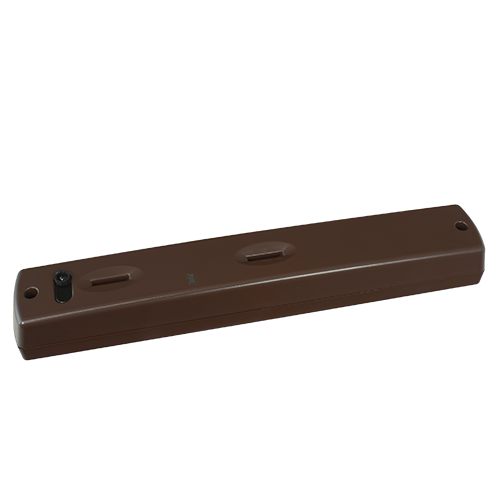

SOP-2IRDT-BR

SOP-2IRDT-BR

73,63 €
79,17 €
PIR detector - Integrated Ajax Transmitter - Microwave and double PIR curtain type - Detection range 3 m - Antimasking Technology - Reach in open space 1200 m
Description
  • Sopras
  • Outdoor curtain detector with low consumption
  • Bidirectional
  • Double technology: double PIR and microwave with antimasking
  • Detection: Range 3 m / 35º
  • Motion detection indicator
  • Tamper-resistant opening
  • Range in open space 1200 m
  • Power supply 1 battery ER14505 3.6 V
  • Outdoor use
  • Degree of protection IP54
  • Includes mounting bracket
  • Colour brown
  • Includes Ajax transmitter for wireless communication with Ajax panels
Specifications
TechnologyMicrowave y doble PIR tipo cortina con Antimasking
Microondas24 GHz / Adjustable
PIR lens2 zones
Detection range3 m / 35º
Frequency868 MHz Jeweller with Ajax transmitter included
Transmission distance≤ 1200 m in open space
MaskingAvailable
Tamper-resistant openingAvailable
LEDs indicationAlarm
DIP switch configurationAntimasking, AND/OR function, impulse counter (1 or 2), Microwave and LEDs
Wired outputsAlarm, tamper and transmitter power supply
Power1 battery ER14505 3.6V
ConsumptionMinimal consumption (Rest: 30 uA / Maximum: 20 mA)
Temp. operation-20 ºC ~ 50 ºC
Degree of protectionIP54
Dimensions295 (H) x 37 (W) x 32 (D) mm
Weight150 g
Contents
  • PIR detector
  • Instructions Manual
  • Mounting material
