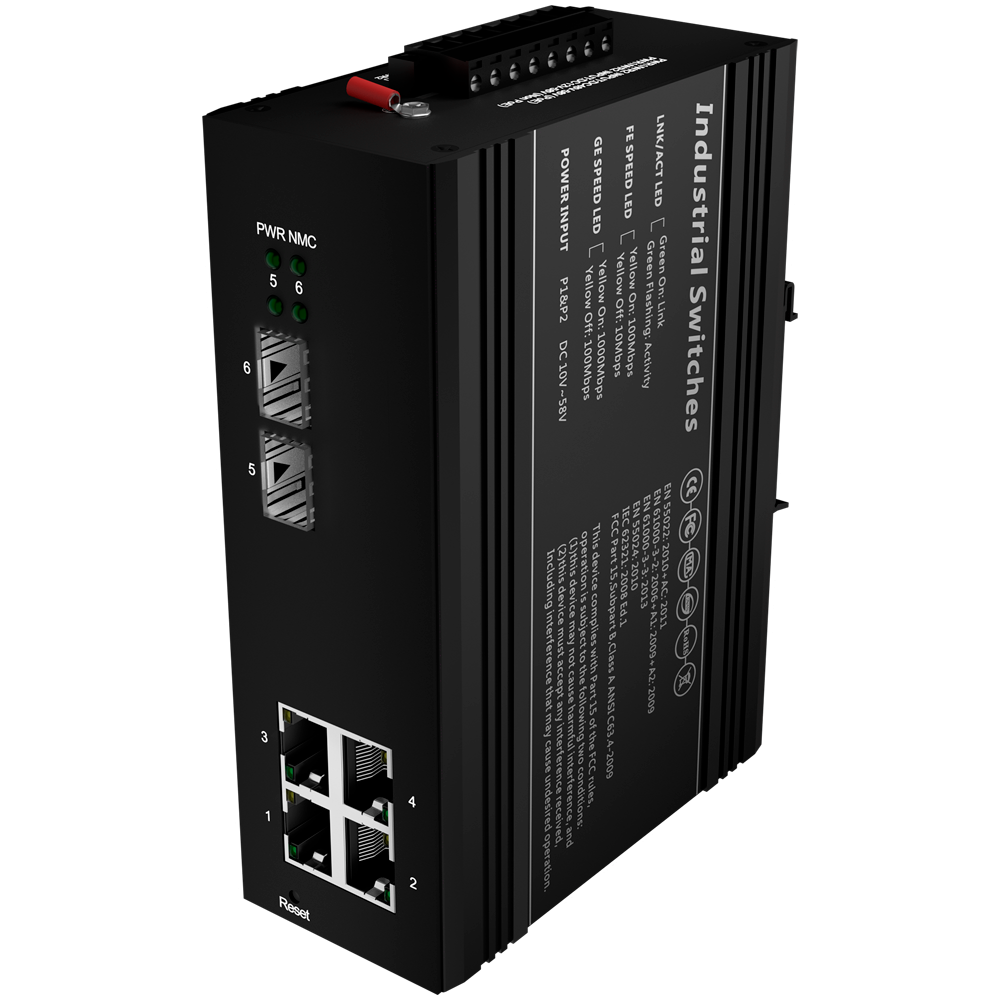

White Brand PoE Switch
User instructions
White Label
Manageable Desktop Switch
2 Ports RJ45 Gigabit PoE+ 802.3.af/at + 2 Gigabit Hi-PoE Ports
2 Gigabit SFP Ports
Supports PoE power up to 120 W total for all ports
Up to 90W on port 1 or 2 and up to 30W on ports 3 and 4
Compatible with PoE IEEE802.3af/at and Hi-PoE
Din rail mounting
Interface | 4 Ports RJ45 Gigabit + 2 SFP Gigabit Ports |
PoE characteristics | Up to 90W ports 1 or 2 IEEE802.3bt Hi-PoE Up to 30W ports 3-4 IEEE802.3af/at PoE/PoE+ Maximum 120W |
Supported Topologies | Ring / Star / Bus / Tree |
Physical Layer Protocols | MDX/MDIX/Flow Control |
Network Protocols | VLAN/STP/RSTP/SNMP/IGMP Snooping/802.1x/Port Isolation/QinQ |
Management Protocols | SNMP/CLI/Console/WebUI/SSH/Telnet/Rmon |
Quality of service | Highlighting and priority mapping Supports SP and WRR algorithms Rate limit QoS-based policies |
Link Aggregation | Up to 12 groups |
Jumbo Frame | 10Kbyes |
ACL | Supports 500 ACL of standard and extended type |
Switching Capacity | 36Gbps |
MAC Table | 16K |
Packet Forwarding Rate | 26,78Mbps |
Buffer | 12M |
Installation | DIN rail |
Power | DC 48 V ~ 58 V |
Dimensions | 48 (D) x 104 (H) x 143 (W) mm |
Weight | 580 g |
Operating temperature | -40º C ~ 75º C |
