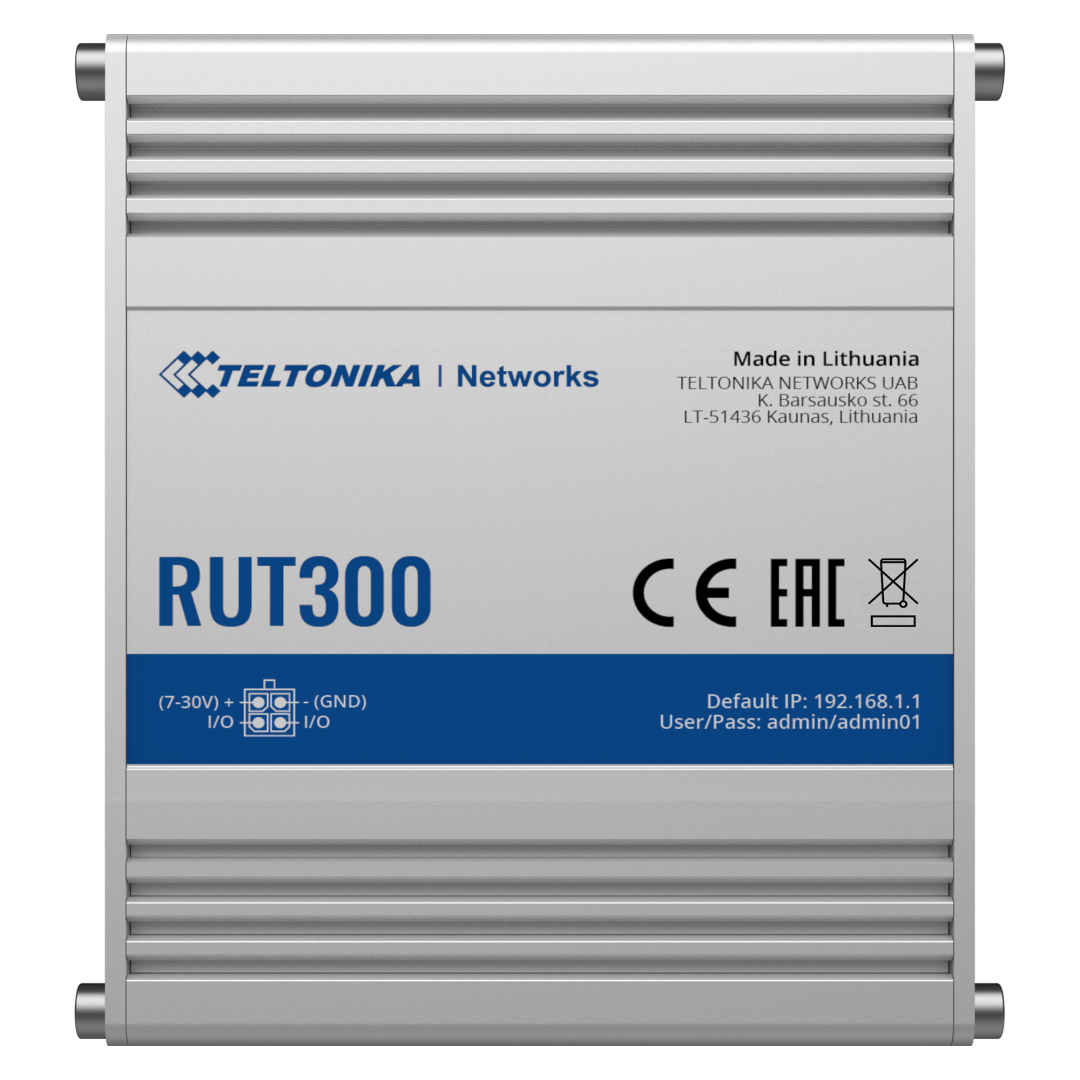

TK-RUT300

TK-RUT300

73,63 €
79,17 €
Teltonika Industrial Router - 5 Ethernet ports RJ45 Fast Ethernet - USB 2.0 - 2x Inputs + 2 Digital Outputs - Aluminum Housing
Description
  • Teltonika
  • Industrial Router
  • 5 Ethernet ports RJ45 Fast Ethernet
  • USB 2.0 and Up to 2 Digital Inputs and 2 Digital Outputs
  • Industrial 4 pin DC power connector
  • DC power 7 to 30V Power Supply Included
  • Passive PoE power supply
  • Status LEDs
Specifications
BrandTeltonika
DeviceIndustrial Router
Ethernet5 Ethernet ports RJ45 10/100/1000Mbps (1 WAN + 4 LAN)
CPUQCA9531, MIPS 24kc, 650 MHz
RAM64MB
Flash16MB
Operating SystemRutOS (Based on OpenWRT)
Inputs and Outputs2 x Digital Inputs and Outputs. Digital Input to 0 - 5 V detected as low level, 8 - 30 V detected as high level. Open collector, maximum output 30 V, 300 mA
Network ProtocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP (planned), SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP (planned), MQTT (planned), Wake on LAN (WOL) (planned)
VPN ProtocolsOpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
Monitoring and ManagementWEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Cloud SolutionsRMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
ServicesDDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging
PowerDC connector 4 Industrial pins 7~30V Power Supply Included
MaterialAluminium
Temp. operation-40º C ~ +75º C
Operating humidity10 ~ 90 % (non-condensing)
Optional Mounting Kit (Not included)Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit
Dimensions30 (Al) x 100 (W) × 85 (Fo) mm
Weight229 g
Contents
  • Industrial Router
  • AC power supply 18W
  • Ethernet Cable 1,5m
  • User instructions
