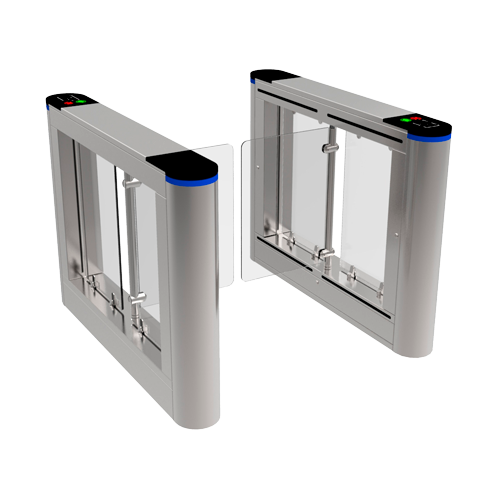

Single-entry double motorized gate turnstile
Automatic movement of the acrylic barrier in the walking direction
Access width 800 mm with ultra-thin poles
Valid for disabled access
Led indicator
Emergency mode
Main board with display for configuration of the turnstile (opening times, counter, relay inputs)
Secondary board for connection to main board
Made of stainless steel SUS304 and acrylic barriers
Configuration Modes: One or two-way, One or two-way free movement
Plug & Play compatible with third party access control systems
Ergonomic design
Universal covers for card readers
Model | TS-SG801-800 |
Controller | Turnstile control board compatible with any Access Control system with display |
Led indicator | LED status indicator |
Barrier movement | Opening angle of the acrylic barrier. In the direction of travel Input or Output |
Emergency mode | Emergency barrier opening with fire signal |
Security | Configurable anti-tailigating with sound and lock |
Compatibility | Can be integrated with any third party access control Plug & Play / Universal Covers for RFID readers |
Configuration Modes | One or two directions / Free passage in one direction and access control in the opposite direction |
Manufacturing material | Stainless steel SUS304 with motorized acrylic doors and PC covers |
Passage speed | 35-40 persons/minute |
Reliability | 5.000.000 of cycles |
Power | AC 110/220 V / 35W max. |
Temp. operation | -25º C ~ +70º C |
Lane Width | 800 mm |
Dimensions of pass | 800 (W) x 1400 (D) mm (Suitable for persons with reduced mobility) |
Dimensions | 1020 (H) x 185 (W) x 1400 (D) mm |
Weight | 65 Kg |
