Medium turnstile
Mounting material
User instructions
Security keys
TS-SG801-M-800
1922,00 €
2066,67 €
2066,67 €

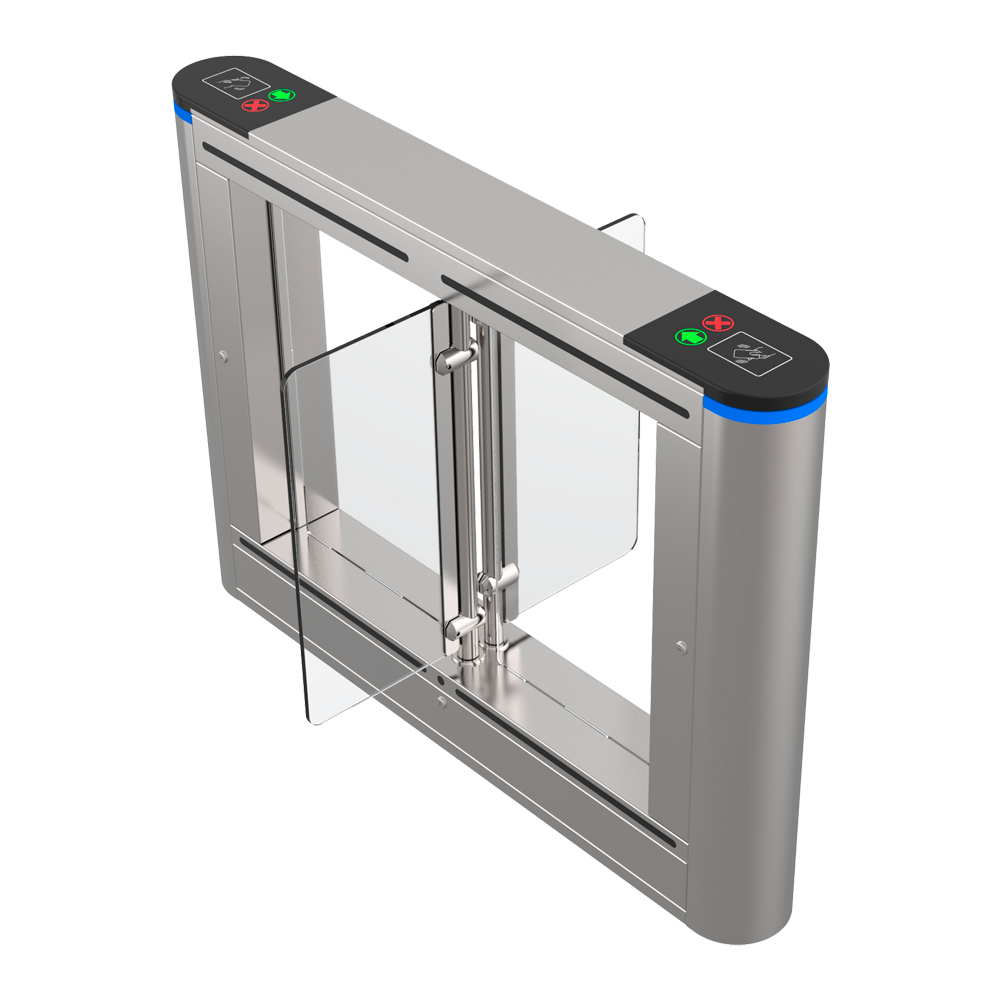

Double bi-directional access turnstile - Double motorised gate - Times, Alarms, Opening Modes - Step dimensions 800 mm - Made of stainless steel SUS304 - Adds access corridors to TS-SG801-800
Description
Bi-directional motorized two-way turnstile with two passages
Automatic movement of the acrylic barrier in the walking direction
Access width 800 mm with ultra slim post
Valid for disabled access
LED indicators
Emergency mode
Main board with display for configuration of the turnstile (opening times, counter, relay inputs)
Secondary board for connection to main board
Made of stainless steel SUS304 and acrylic barriers
Configuration Modes: One or two-way, One or two-way free movement
Plug & Play compatible with third party access control systems
Ergonomic design
Universal covers for card readers
Each unit adds an additional aisle to TS-SG801-800
TS-SG801-800 required for complete installation
Specifications
| Model | TS-SG801-M-800 |
| Controller | Turnstile control board compatible with any Access Control system with display |
| Led indicator | LED turnstile status indicators |
| Barrier movement | Opening angle of the acrylic barrier. In the direction of travel Input or Output |
| Emergency mode | Emergency barrier opening with fire signal |
| Security | Configurable anti-tailigating with sound and lock |
| Compatibility | Can be integrated with any third party access control Plug & Play / Universal Covers for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and access control in the opposite direction |
| Manufacturing material | Stainless steel SUS304 with motorized acrylic doors and PC covers |
| Passage speed | 35-40 persons/minute |
| Reliability | 5.000.000 of cycles |
| Power | AC 110/220 V / 35W max. |
| Temp. operation | -25º C ~ +70º C |
| Lane Width | 800 mm (Medium turnstile, size 400 mm) |
| Dimensions of pass | 400 (W) x 1400 (D) mm (Suitable for persons with reduced mobility) |
| Dimensions | 1020 (H) x 185 (W) x 1400 (D) mm |
| Weight | 65 Kg |
