- Electrical Insulation Resistance Meter

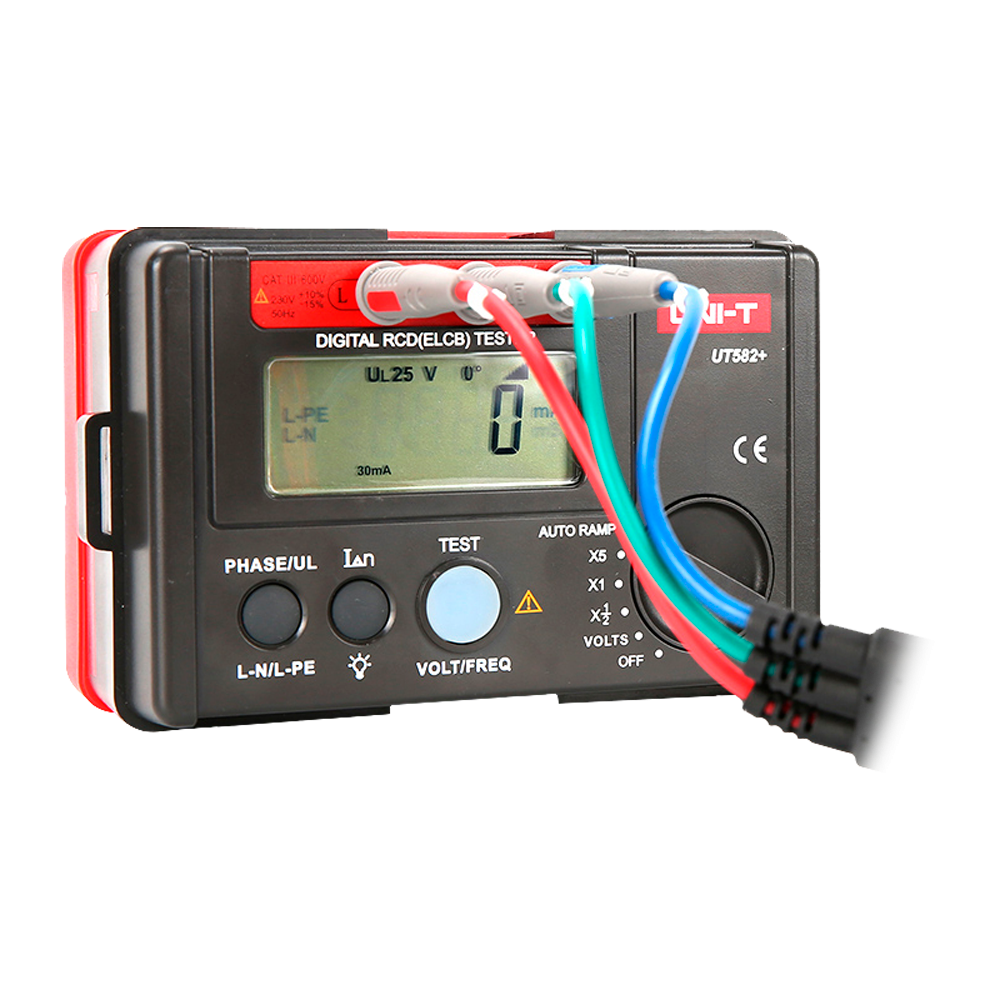

- Test probes
- Alligator clips
- User instructions

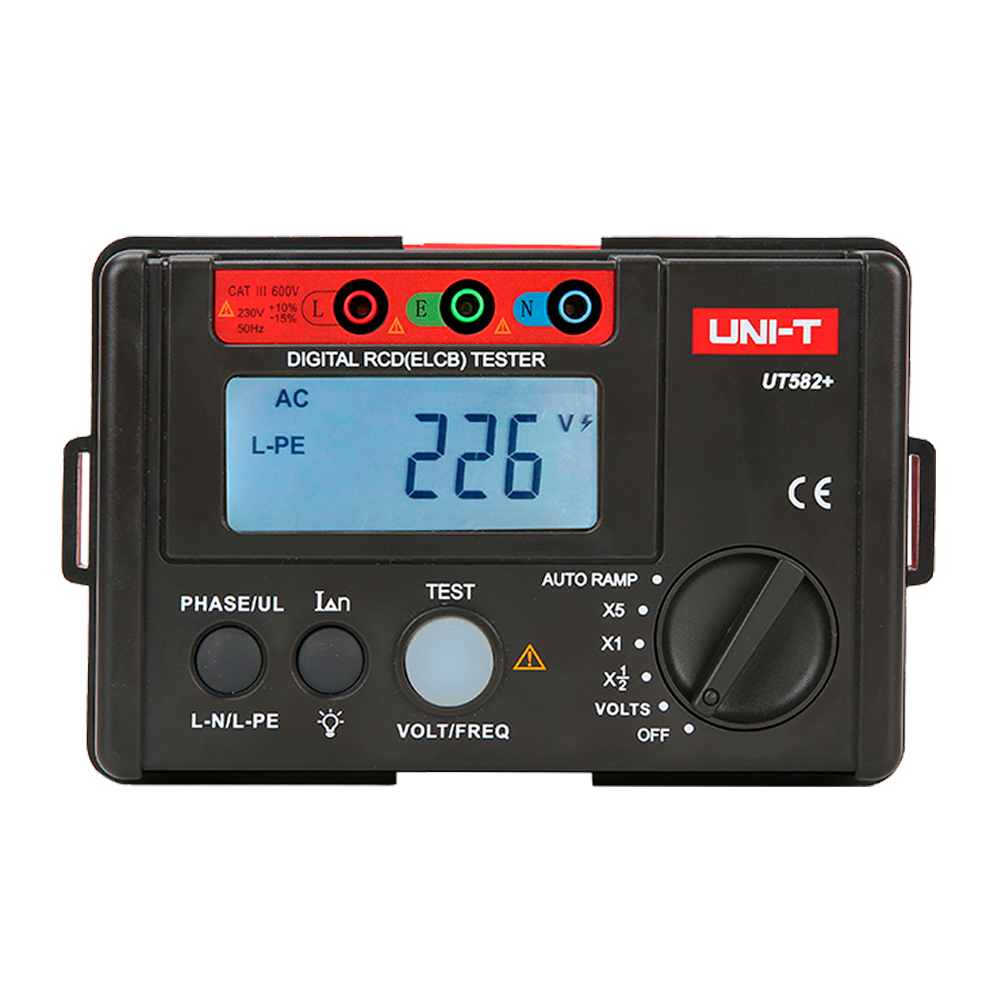

UT582+
80,08 €
86,11 €
86,11 €
Circuit breaker trigger time tester - LCD display up to 1000 accounts - Compatible with single-phase circuits 195V~253V - AC voltage measurement up to 600V - Phase selector 0º and 180º - Automatic shutdown
Description
- UNI-T
- Circuit breaker trigger time tester
- LCD display up to 1000 accounts
- Compatible with single-phase circuits of 195~253V
- AC voltage measuring range 30~600V
- Frequency measurement range 45~65Hz
- Phase angle selection 0~180º
- Automatic shutdown
Specifications
| Brand | Uni-T |
| Isolation Resistance | X1/2: 10mA/20mA/30mA/100mA/300mA/500mA 2000mS -10%~0% X1: 10mA/20mA/30mA/100mA/300mA 1000mS 0%~10% 500mA 300ms 0%~10% X5: 10mA/20mA/30mA 40ms 0%~10% AUTO RAMP: 10mA/20mA/30mA/100mA/300mA/500mA 300ms -10%~10% |
| Auto ramp | Yes, it is available |
| AC voltage measuring range | 30V~6000V ±(3%+3) |
| Display dimensions | 71mm x 34mm |
| Display accounts | Up to 1000 |
| Phase angle selection | 0º y 180º |
| Connection tester | Simultaneous test of trigger time and trigger current |
| Dimensions | 160 (H) x 100 (W) x 71 (D) mm |
| Power | 6 x batteries 1.5V (LR6) |
| Weight | 400 g |
| Security | CAT III 300V/ CAT III 600V |
