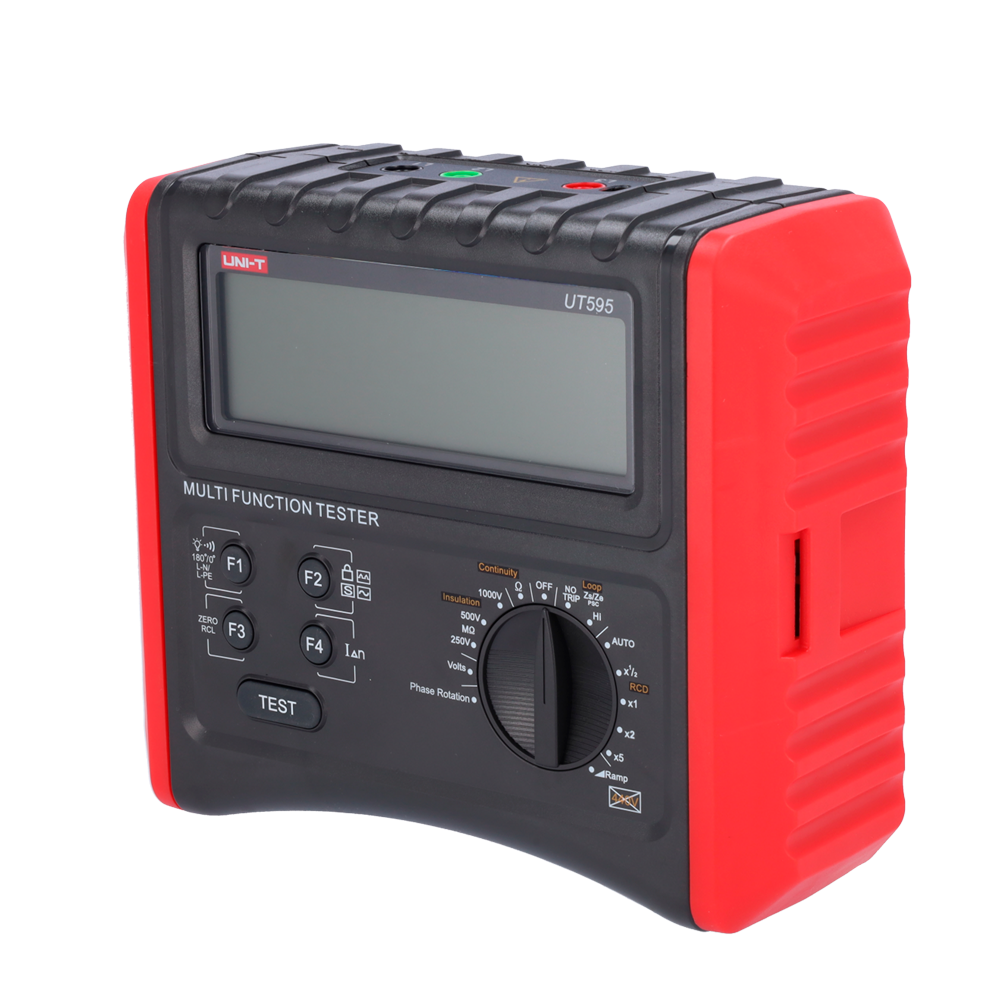

UT595

UT595

435,65 €
468,44 €
Multifunction installation measurement device - LCD display of 9999 accounts - Insulation resistance and continuity measurement - Line and loop impedance measurement - RCD test | RCD ramp test - Phase sequence test
Description
  • UNI-T
  • Multifunction installation measurement device
  • LCD backlit display of 9999 accounts
  • Insulation resistance measurement up to 1000MΩ
  • Continuity test with acoustic and optical signal
  • Circuit breaker tester
  • RCD current and circuit breaker release time measurement
  • Impedance loop short-circuits
  • Phase rotation indicator
  • Frequency measurement
  • Impedance measurement
  • Insulation resistance tester
  • AC voltage measurement
  • Automatic shutdown
  • Automatic change of ranges
  • Indication of phase sequence direction
  • Exceeding the measuring range indicator
  • Low battery indicator
Specifications
BrandUni-T
Measuring range insulation resistance0.05MΩ~250MΩ ±(5%+5) Output voltage 250V
0.05MΩ~500MΩ ±(5%+5) Output voltage 500V
0.05MΩ~1000MΩ ±(5%+5) Output voltage 1000V
Continuity test (low resistance)Range: 0.00Ω~199Ω ±(2%+5)
Test current: 0.00~2Ω: >200mA
Single line impedance measurementRange: 0.01Ω~2000Ω ±(5%+5)
Test voltage (and frequency): 195V~440V (45Hz~65Hz)
Test current: 20A
PFC Test: 0kA~26kA
Loop impedance measurementRange: 0.01Ω~2000Ω ±(5%+5)
Test voltage (and frequency): 195V~253V (45Hz~65Hz)
Test current: 20A
PFC Test: 0kA~26kA
Non-triggered loop impedance measurementRange: 1.00Ω~2000Ω ±(5%+5)
Test voltage (and frequency): 195V~253V (45Hz~65Hz)
Test current: 15mA
PFC Test: 0kA~26kA
RCD TestTest voltage (and frequency): 195V~253V (45Hz~65Hz)
Test current: 10mA/30mA/100mA/300mA/500mA ±10%
Phase sequence testTest voltage (and frequency): 100V~440V  (45Hz~65Hz)
Display: Phase sequence:
L1→ L2→ L3 Forward rotation
L1→ L3→ L2Rotación backwards
RCD ramp testTest current:
- 10mA ±10%
- 30mA ±10%
- 100mA ±10%
- 300mA ±10%
- 500mA ±10%
AC voltage (V)Range: 0V~440V ±(5%+2)
Frequency of response: 45Hz~60Hz
Resolution: 1V
Display dimensions125mm x 37mm
9999 accounts
Backlight
MemoryYes, it is available
Automatic half-wave testYes, it is available
RCD countdown testYes, it is available. 30s
RCD half-wave testYes, it is available
Phase converter (RCD)Yes, it is available. 0° y 180°
Automatic shutdownYes, it is available
Low battery indicatorYes, it is available
Dimensions210 (H) x 175 (W) x 90 (D) mm
PowerBatteries 1.5V (LR6) x 6
Weight1.1 kg
SecurityCAT III 600V
Contents
  • Multifunction installation measurement device
  • Cable test wires (red, green and black)
  • Special power test cable
  • Remote control test cable
  • Batteries 1.5V (LR6) x 6
  • User instructions
