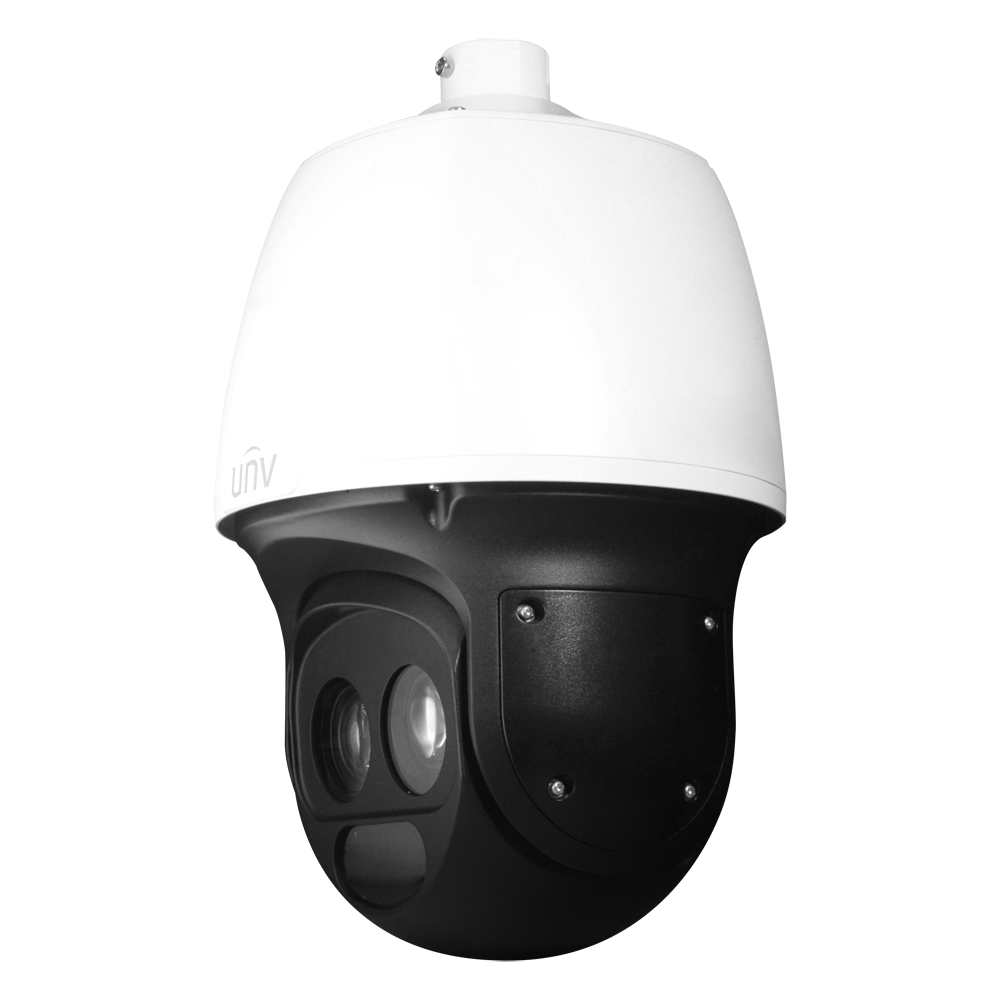

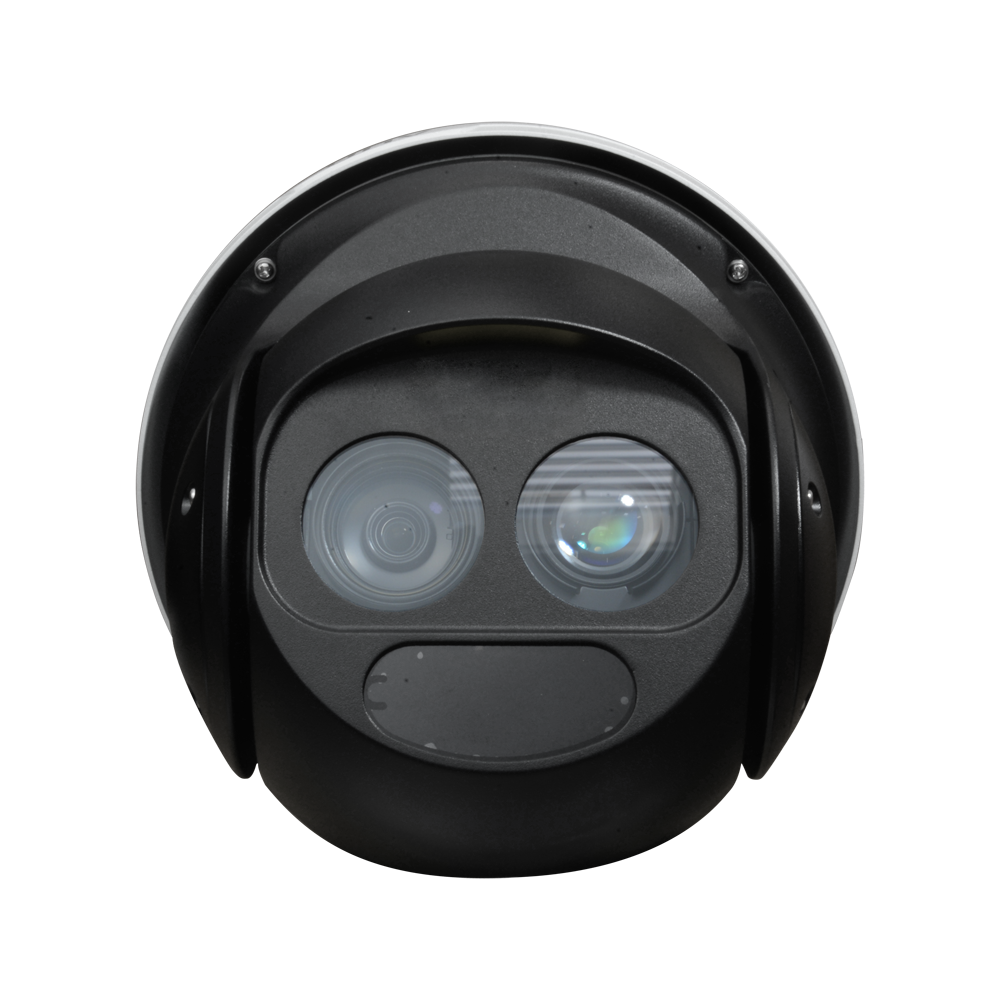

UV-IPC6652EL-X33-VF

2 MP Motorised IP Camera - Pro range - 1/2.8” Progressive Scan CMOS - Lens 4.5~148.5mm (33X) | IR Laser 500 m - WDR 120 dB - WEB, CMS Software, Smartphone and NVR

Brand

UNIVIEW

Availability

2-5 Days

Questions about this item

Available for resale

Description

UNIVIEW

PTZ IP Camera

Pro range

Speed up to 300º/s

33X Optical zoom

1/2.8" Progressive Scan CMOS

2 Megapixel (1920x1080) 60fps

4.5~148.5mm Varifocal Lens

IR Laser Range 500 m

Ultra compression 265/H.265/H.264/MJPEG

WDR 120dB

Intelligent functions

Intelligent Perimeter Protection | Accurate detection of humans and vehicles (avoids false alarms)

1024 presets

Video output BNC

PoE IEEE802.3at

Weatherproof IP66

IR Cut

Audio

Alarms

SD card recording

WEB, CMS, Smartphone and NVR interface

ONVIF Compatible

Specifications

Brand	UNIVIEW
Image sensor	1/2.8" Progressive Scan CMOS
Resolution	2 Megapixel (1920x1080)
Minimum illumination	0.001 Lux (colour)
Infrared lighting	IR Laser 500 meters
Compression	Ultra265/H.265/H.264
Lens	Varifocal 4.5~148.5mm (Optic Zoom 33X)
Digital zoom	16X
Electronic shutter	1/1s~1/100,000s
Day / Night	Mechanical ICR filter
Image improvements	BLC, HLC, EIS, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI, ANR
Smart Intrusion Prevention	Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area
Smart Features	People counting, Face detection, Line crossing, Intrusion detection, Auto tracking, Audio detection, Reiterated object, Abandoned object
Pan/Tilt Range	Horizontal: 0°~360°, Vertical: -15°~90° auto flip
Speed	Horizontal: 0.1° ~ 200°/sec, Vertical: 0.1° ~200°/s
Speed between Presets	Horizontal: 300° /s, Vertical: 240° /s
Preset positions	1024 preset, preset patrol, route patrol, recorded patrol
Internal memory	MicroSD card, Max 256 GB
Audio	1 input / 1 relay
Alarms	2 IN / 1 OUT
Network interface	Ethernet 10 / 100 BaseT
Video output	RJ45
Remote access	EZStation Web Browser, Smartphone App and PC Software
Interoperability	ONVIF, PSIA, CGI
Power	DC 24 V / AC 24 V / 58W, PoE+ IEEE802.3at
Temp. operation	-40º C ~ +70º C
Degree of protection	Weatherproof IP66
Dimensions (without bracket)	385 mm (H) x 227 (Ø) mm
Weight (without bracket)	5700 g

Contents

Uniview Motorized IP Dome Camera

Installation material

Assembly instructions
