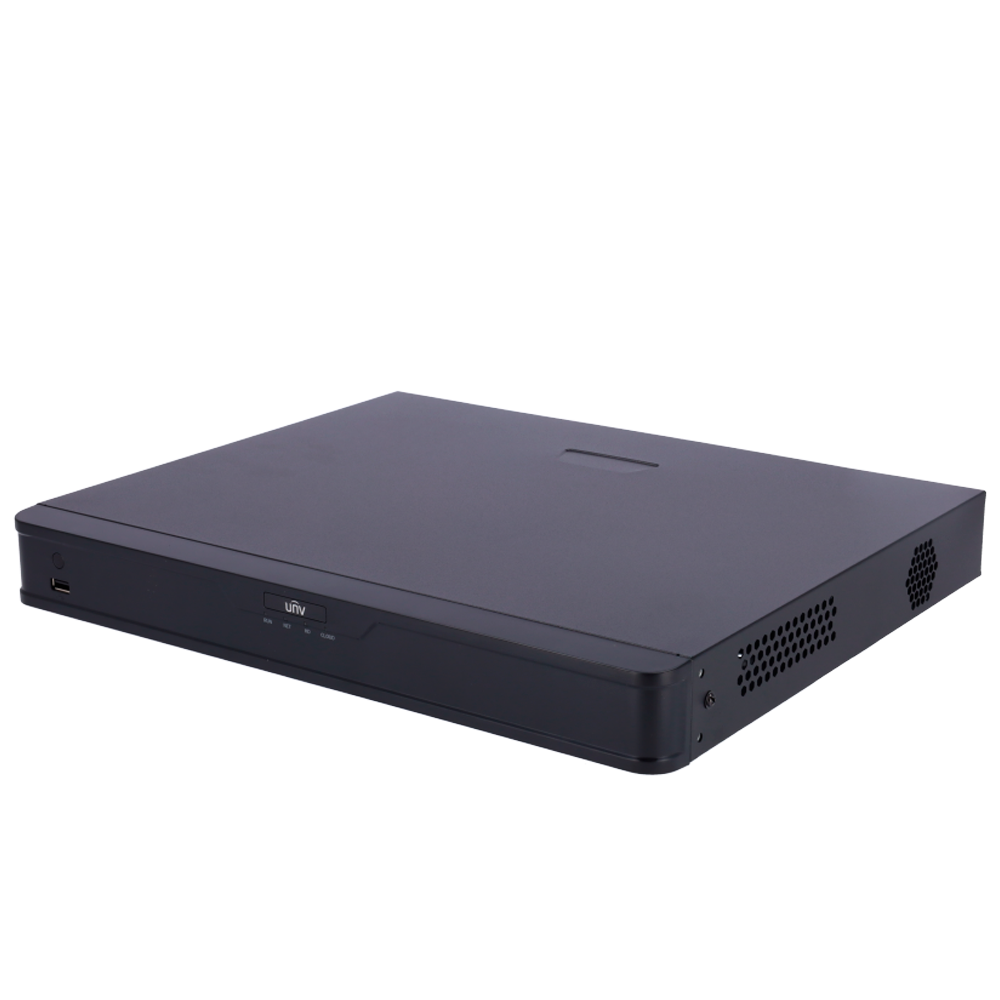

UV-NVR302-32E2

UV-NVR302-32E2

NVR for IP cameras - Easy range - 32 CH video / Ultra Compression 265 - Maximum resolution 12 Mpx - Space for 2 hard disks
Description

Uniview

NVR for IP cameras

Easy range

32 CH

320 Mbps bandwidth supported

Maximum resolution 12 Megapixel

Compression Ultra265/H.265/H.264

VGA and HDMI 4K output

Mouse

Space for 2 HDD up to 8 TB

WEB, CMS, Smartphone and NVR interface

ONVIF Compatible

Specifications
Brand Uniview
Range Easy
Inputs for IP cameras LAN port up to 32 channels
IP compatible cameras UNIVIEW, ONVIF
Bidirectional audio 1 input / 1 RCA output
Video outputs 1 HDMI 4K, 1 VGA
Video compression format Ultra H.265 / H.265 / H.264
Display resolution 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768
Total bandwidth 320 Mbps downstream / 320 Mbps upstream
I/O alarms 8/2
Main Stream recording 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ VAT
SIP Channels 8 channels
Facial recognition channels 8 channels
LPR Channels 8 channels
Recording method Manual, programmed, motion detection
Smart Features People Counting, Face Detection, Intrusion Detection, Line Crossing, Scenery Change, Blur Detection, Auto Tracking, Removed object, Abandoned object
External Backup USB / HDD USB memory
Internal memory 2 SATA HDD 3.5" of up to 8 TB (not included)
Communication 1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 (Ethernet)
Remote access EZStation Web Browser, Smartphone App and PC Software
Power AC 100~240 V, 50/60 Hz
Dimensions / Weight 380 (H) x 315 (W) x 53 (D) mm / 1.8 Kg
Contents

Uniview NVR

Mouse

Power supply cable
