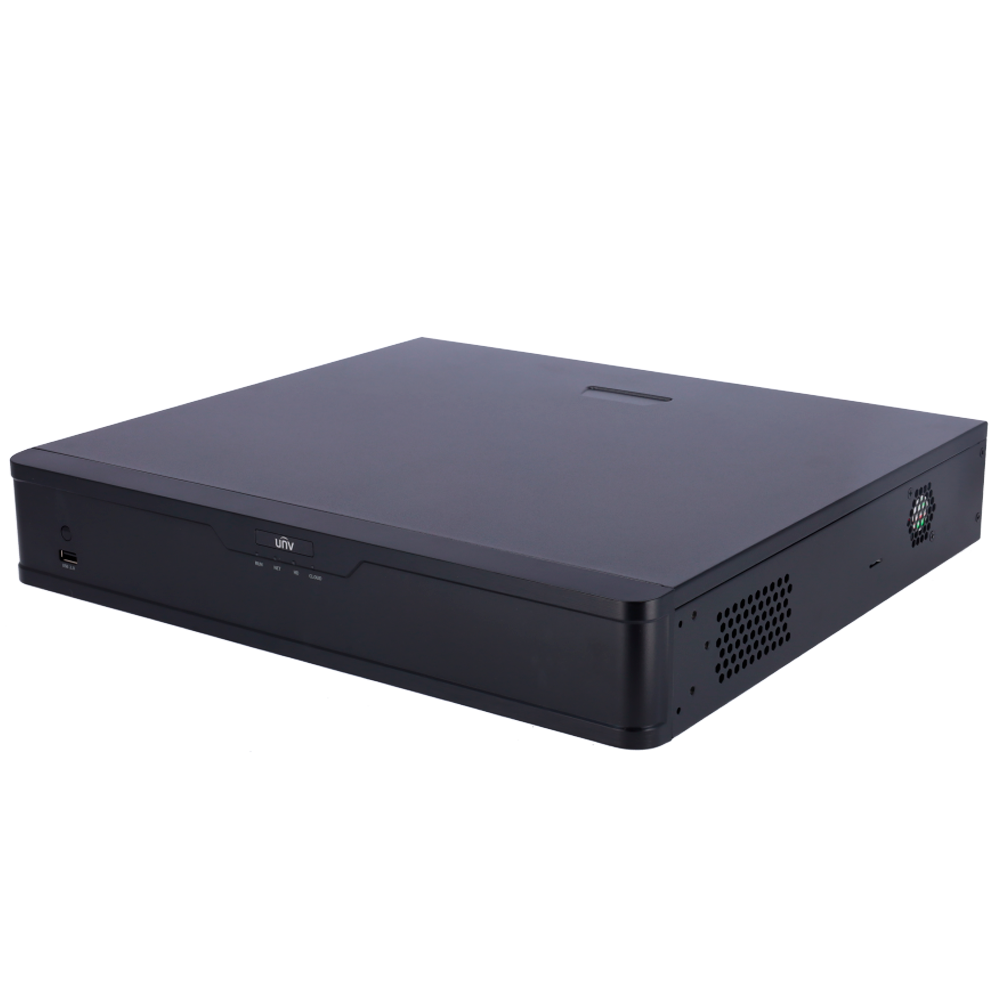

UV-NVR304-32E2-P16

UV-NVR304-32E2-P16

NVR for IP cameras - Easy range - 32 CH video / Ultra Compression 265 - 16 PoE channels - Bandwidth 320 Mbps - Space for 4 hard disks
Description

Uniview

NVR for IP cameras

Easy range

32 CH

320 Mbps bandwidth supported

Maximum resolution 12 Megapixel

Compression Ultra265/H.265/H.264

Alarms

Audio

Outputs 4K HDMI & VGA

Mouse

Space for 4 HDD up to 10 TB - 16 PoE ports IEEE802.3af/at

WEB, CMS, Smartphone and NVR interface

ONVIF Compatible

Specifications
Brand Uniview
Range Easy
Inputs for IP cameras LAN port up to 32 channels
Power over Ethernet 16 PoE IEEE802.3at(max.240 port switch W)
IP compatible cameras UNIVIEW, ONVIF
Bidirectional audio 1 input / 1 RCA output
Video outputs 1 HDMI 4K, 1 VGA
Video compression format Ultra H.265 / H.265 / H.264
Display resolution 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768
Total bandwidth 320 Mbps downstream / 320 Mbps upstream
Main Stream recording 12 Mpx / 8Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 960p / 720p / D1 / 2CIF / CIF
Decoding 1@12MP, 2@4K, 5@4MP, 10@
1080P, 16@720P
Alarms 16 Inputs / 4 Relays
Recording method Manual, programmed, motion detection
Smart Features People Counting, Face Detection, Intrusion Detection, Line Crossing, Scenery Change, Blur Detection, Auto Tracking, Removed object, Abandoned object
External Backup USB / HDD USB memory
Internal memory 4 HDD SATA 3.5" of up to 10TB (not included)
Communication 1 x USB 2.0 / 1 x USB 3.0 / 1 x RJ45 (Ethernet)
Remote access EZStation Web Browser, Smartphone App and PC Software
Power 100~ 240 V AC
Dimensions / Weight 400mm × 363mm × 74mm / <4kg
Contents

Grabador NVR Uniview

Ratón

Cable de alimentación
