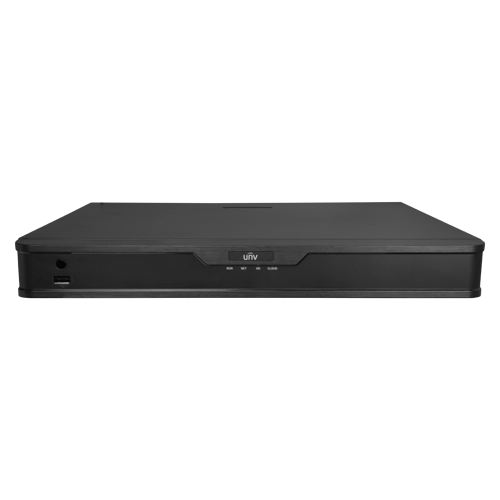

UV-NVR304-32S-P16

UV-NVR304-32S-P16

NVR for IP cameras - Easy range - 32 CH video / Ultra Compression 265 - 16 PoE channels - Bandwidth 160 Mbps - Space for 4 hard disks
Description

Uniview

NVR for IP cameras

Easy range

32 CH

160 Mbps bandwidth supported

Maximum resolution 8 Megapixel

Compression Ultra265/H.265/H.264

VGA and HDMI 4K output

Supports smart features

Smart Intrusion Prevention on 8 channels

Mouse

Space for 4 HDD

16 PoE ports IEEE802.3af/at

WEB, CMS, Smartphone and NVR interface

ONVIF Compatible

Specifications
Brand Uniview
Range Easy
Inputs for IP cameras LAN port up to 32 channels
Power over Ethernet 16 PoE IEEE802.3at(max.240 port switch W)
IP compatible cameras UNIVIEW, ONVIF
Bidirectional audio 1 input / 1 RCA output
Video outputs 1 HDMI 4K, 1 VGA
Video compression format Ultra H.265 / H.265 / H.264
Display resolution 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768
Total bandwidth 160 Mbps downstream / 64 Mbps upstream
Main Stream recording 8Mpx / 5Mpx 4Mpx 3Mpx / 1080p / 960p 720p / D12CIF / CIF
Decoding 2x4K @ 30fps / 4x4MPx @ 30fps /5x3MPx @ 30fps / 16x720p @ 30fps / 32xD1 @ 30fps
Alarms 16 Inputs / 4 Relays
Recording method Manual, programmed, motion detection
Intelligent functions People Counting, Face Detection, Intrusion Detection, Line Crossing, Scene Change, Audio Detection, Blur Detection, Auto Tracking, Object Removed, Object Left Behind

Smart Intrusion Prevention

External Backup USB / HDD USB memory
Internal memory 4 SATA HDD 3.5" of up to 14 TB (not included)
Communication 1 x USB 2.0 / 1 x USB 3.0 / 1 x RJ45 (Ethernet)
Remote access EZStation Web Browser, Smartphone App and PC Software
Power 100~ 240 V AC
Dimensions / Weight 74 (H) x 400 (W) x 362 (D) mm / <5 kg=" td=">
Contents

Uniview NVR

Mouse

Power supply cable
