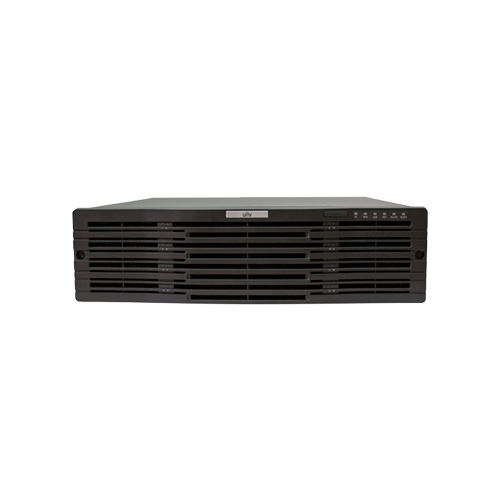

UV-NVR516-128

NVR for IP cameras - Pro range - 128 CH video | 12 Mpx - Supports 2 decoder cards - Bandwidth 512 Mbps - Supports 16 hard drives | RAID

Availability

2-5 Days

Description

Uniview

NVR for IP cameras

Pro range

128 CH

512 Mbps bandwidth supported

Maximum resolution 12 Megapixel

Compression Ultra265/H.265/H.264

Intelligent functions

Alarms

Audio

Output 2 x HDMI 4K and VGA

Supports 2 decoder cards

Space for 16 HDD

Up to 48 HDD using 2 miniSAS ports

RAID function 0/1/5/6/10/50/60

Output DC 12 V

Redundant power supply (optional)

Mouse

WEB, CMS, Smartphone and NVR interface

ONVIF Compatible

Specifications

Brand	Uniview
Range	Pro
Inputs for IP cameras	LAN port up to 512 channels
IP compatible cameras	UNIVIEW, ONVIF
Video outputs	2 HDMI 4K, 1 VGA \| Supports 2 decoder cards 6 x HDMI
Video compression format	Ultra265 / H.265 / H.264
Display resolution	3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768
Total bandwidth	512 Mbps downstream / 384 Mbps upstream
Main Stream recording	12Mpx / 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF
Bidirectional audio	1 input / 1 BNC output
Alarms	24 inputs / 8 relay
Recording method	Manual, programmed, motion detection
Smart Intrusion Prevention	Available at 16 channels
Intelligent functions	People Counting, Face Detection, Human Body Detection, Intrusion Detection, Line Crossing, Audio Detection, Scene Change, Blur Detection, Auto Tracking, Object Removed, Object Left Behind
Facial recognition channels	16 channels
LPR Channels	8 channels
Internal memory	16 SATA HDD 3.5" up to 10 TB (not included) \| 1 x eSATA \| 2 x miniSAS
Storage technology	RAID function 0/1/5/6/10/50/60 and Hot Spare function N+1
Communication	4 x USB 3.0 / 4 x RJ45 (Ethernet) / 2 x 1000M SFP / 1 x RS232 / 1 x RS485
Remote access	Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Power	AC 100 ~ 240V (Redundant power supply optional) \| DC output 12V
Dimensions / Weight	131 (H) x 477 (D) x 482 (W) mm / ≤10 Kg (Rack 19" 3U)

Contents

Uniview NVR

Mouse

Power supply cable
