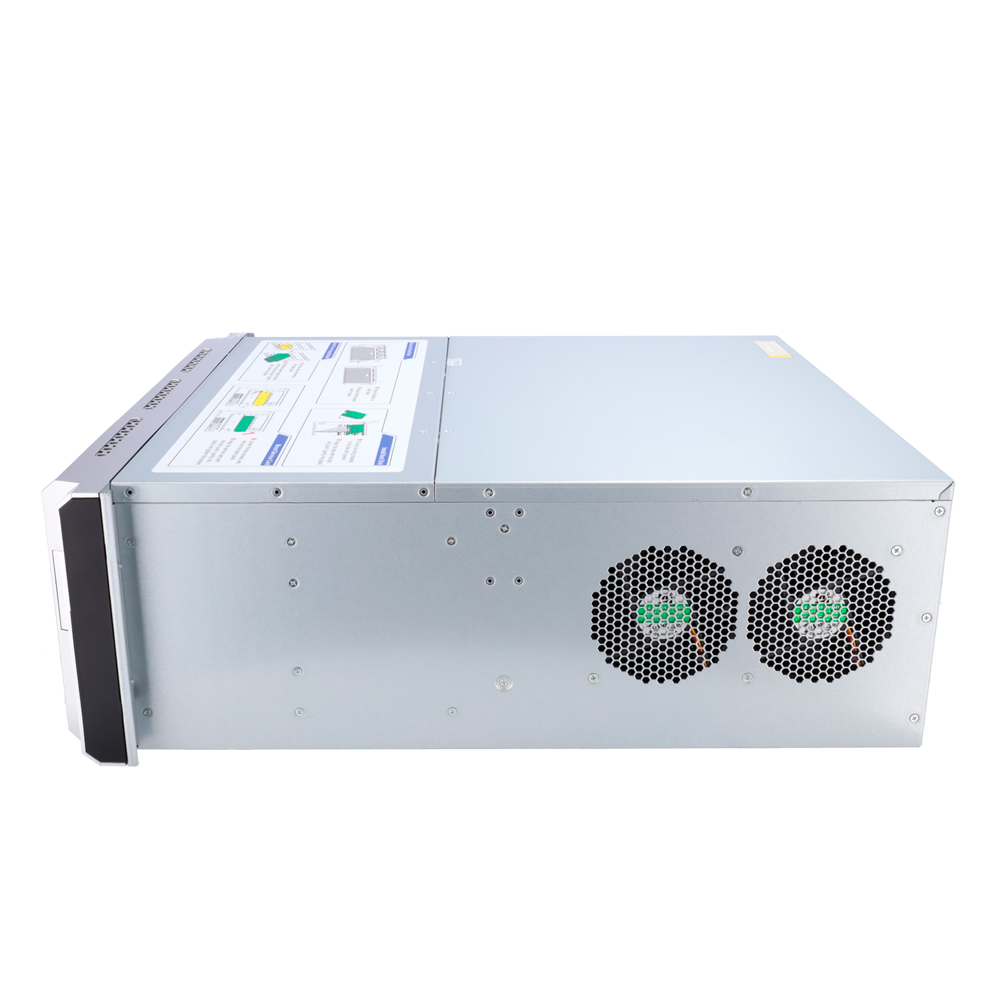

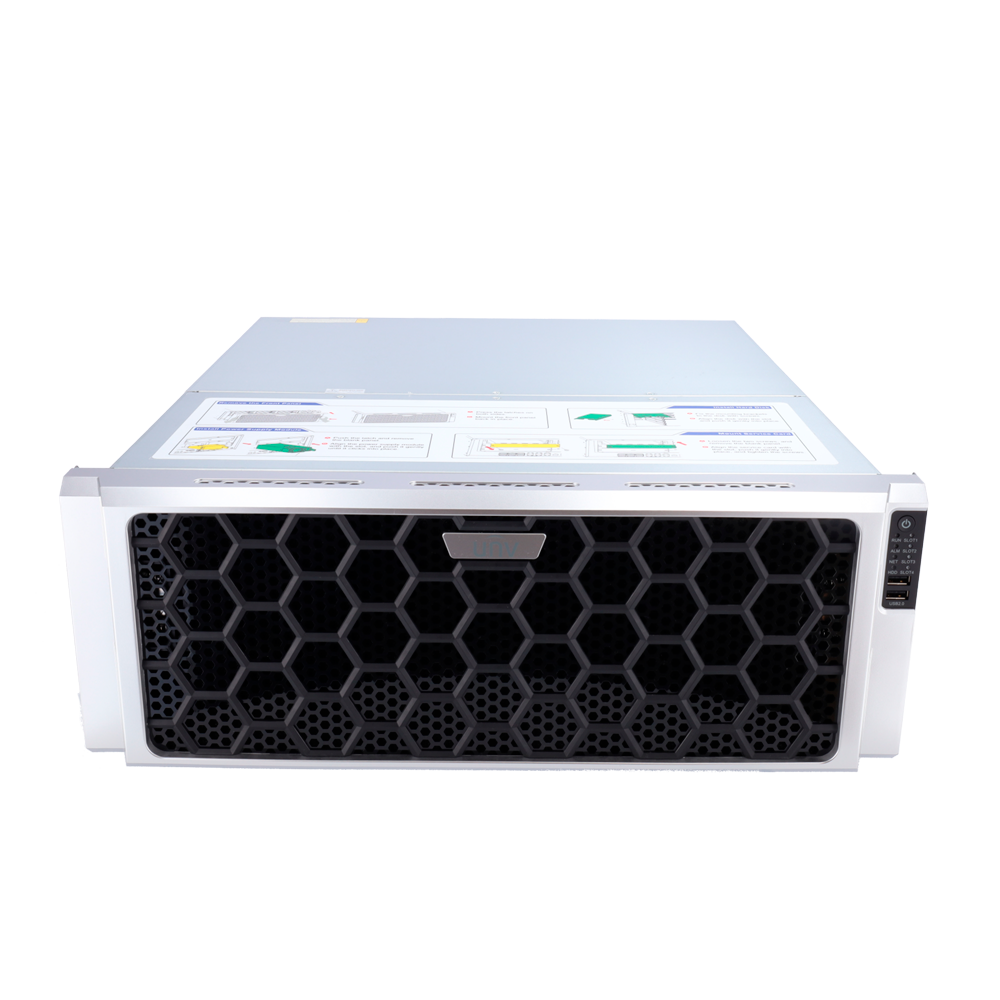

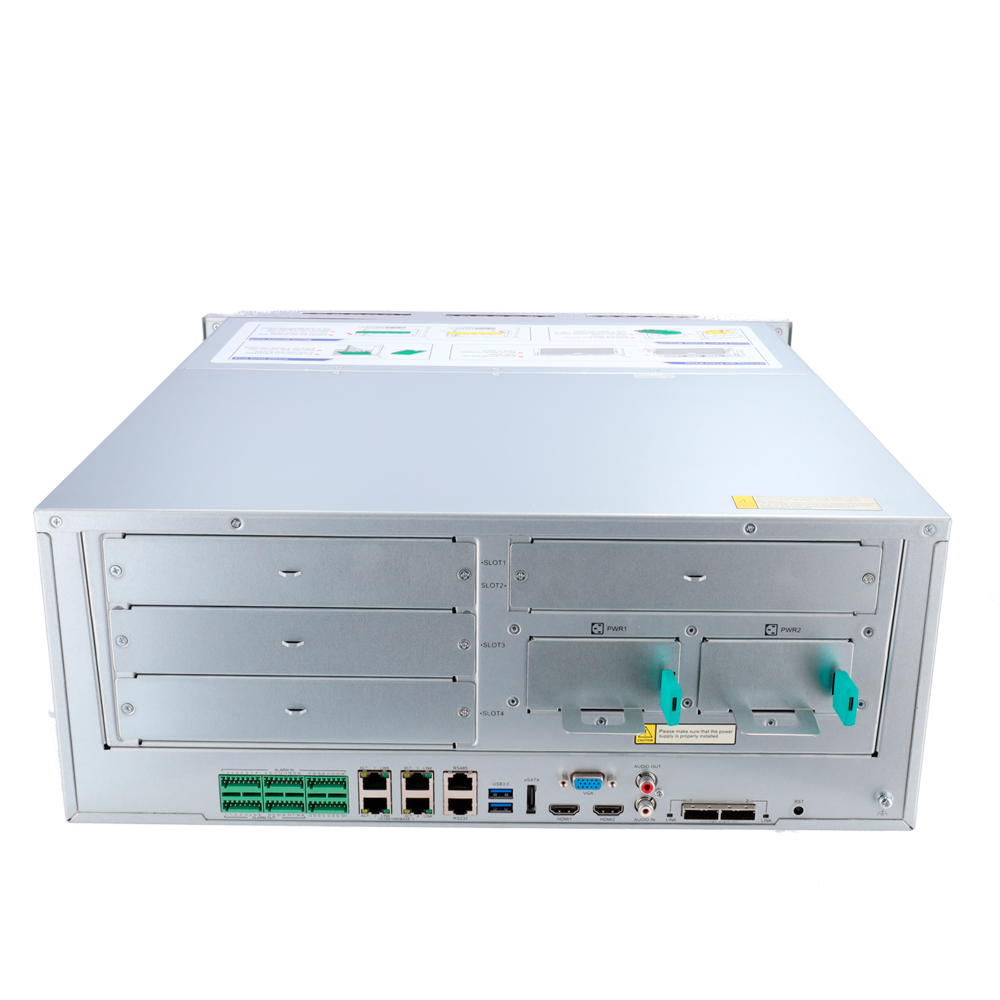

UV-NVR824-256R

NVR for IP cameras - Pro range - 256 CH video | 12 Mpx - Bandwidth 768 Mbps - Supports 24 hard drives | RAID - Redundant power supply

Availability

2-5 Days

Description

Uniview

NVR for IP cameras

Pro range

256 CH

768 Mbps bandwidth supported

Maximum resolution 12 Megapixel

256 remote users

Alarms

Audio

Output 2 x HDMI 4K and VGA

Space for 24 HDD up to 10 TB

RAID function

2 x miniSAS

RS232, RS485, 2 x USB3.0, 2 x USB2.0

4 x RJ45

Output 12 V

Optional redundant power supply

WEB, CMS, Smartphone and NVR interface

ONVIF Compatible

Specifications

Brand	Uniview
Range	Pro
Inputs for IP cameras	LAN port up to 256 channels
IP compatible cameras	UNIVIEW, ONVIF
Video outputs	2 HDMI 4K, 1 VGA
Video compression format	Ultra265 / H.265 / H.264
Resolution HDMI display	1920x1080p@60Hz, 1920x1080p@50Hz, 1600x1200@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1024x768@60Hz
Total bandwidth	768 Mbps downstream / 768 Mbps upstream
Main Stream recording	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Bidirectional audio	1 input / 1 BNC output
Alarms	24 Inputs / 8 Outputs
Intelligent functions	People Counting, Face Detection, Human Body Detection, Intrusion Detection, Line Crossing, Audio Detection, Scene Change, Blur Detection, Auto Tracking, Object Removed, Object Left Behind
SIP Channels	24 channels
Facial recognition channels	24 channels
LPR Channels	8 channels
Internal memory	24 SATA HDD 3.5" up to 10 TB (not included) \| 2 x miniSAS
Storage technology	RAID function 0/1/5/6/10/50/60 and Hot Spare function N+1
Communication	2 x USB 3.0 / 2 x USB2.0 / 4 x RJ45 (Ethernet) / 1 x RS232 / 1 x RS485
Remote users	256
Remote access	Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Power	AC 100 ~ 240V (Redundant power supply optional) \| DC output 12V
Dimensions / Weight	533mm ×484.6mm × 175.5mm / ≤12.5 Kg

Contents

Uniview NVR

Mouse

Power supply cable
