VTCA-HS10-4 Videovigilância Kit HIKVISION

234,29 €
260,32 €

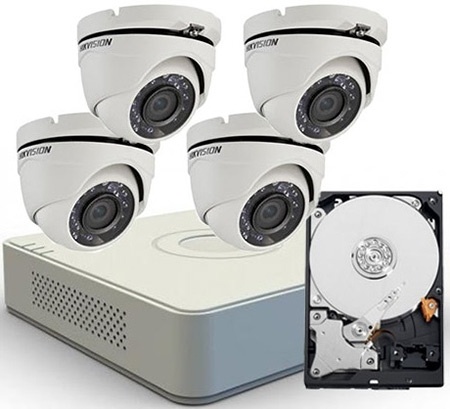

Kit de videovigilância 4 câmaras dome HD 1080p, gravador DVR HDTVI 4 canais e 1 disco de 1 TB
Description

Kit composto por:

1 DVR HDTVI e Analógico, 4ch vídeo, 1ch áudio, 720p/1080p.

4 Câmaras 4 em 1 (HDTVI/AHD/HDCVI/CVBS) 2Mpx, 1080p, lente 3.6mm, IR alcance 20m, DC12V, IP66.

1 Alimentador com 4 saídas para câmaras (opcionalmente por pedido 4 alimentadores)

1 Disco duro de 1 TB. Interface SATA específico para CCTV

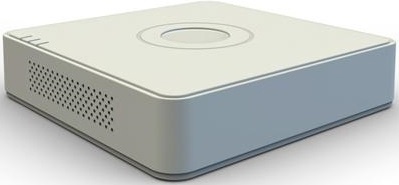

DS-7104HGHI-F1

Video/Audio Input
Audio Input: | 1-ch
Video Compression: | H.264,H.264+
Analog and HD-TVI video input: | 4-ch BNC interface (1.0Vp-p, 75 Ω)
Supported camera types: | Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,
Support AHD input: 720P/25Hz, 720P/30Hz,
Support CVBS input
Video Input Interface: | BNC (1.0 Vp-p, 75Ω)
Audio Compression: | G.711u
Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution: | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate: | Main stream: When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate: | 32 Kbps ~ 4 Mbps
Stream Type: | Video/Video&Audio
Audio Output: | 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: | 64kbps
Dual Stream: | Support
Playback Resolution: | 1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback: | 4-ch
Network management
Remote connections: | 32
Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk Driver
Interface Type: | 1 SATA Interface
Capacity: | Up to 6 TB capacity for each disk
External Interface
Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: | 2 USB 2.0 Interfaces
General
Power Supply: | 12V DC
Consumption: | ≤ 8W
Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity: | 10% ~ 90%
Dimensions: | 200 × 200 × 45mm (7.9 × 7.9 × 1.8 inch)
Weight: | ≤ 0.8 kg / 1.8 lb(without hard disks)



4 x DS-2CE56D0T-IRMF

Camera
Image Sensor: | 2MP CMOS Image Sensor
Signal System: | PAL/NTSC
Effective Pixels: | 1920 (H) × 1080 (V)
Min. illumination: | 0.1 Lux@(F1.2,AGC ON), 0 Lux with IR
Shutter Time: | 1/25 (1/30) s to 1/50,000 s
Lens: | 3.6 mm, Field of view: 82.2°
Lens Mount: | M12
Day & Night: | ICR
Angle Adjustment: | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization: | Internal synchronization
Video Frame Rate: | 1080p@25fps/1080p@30fps
HD Video Output: | 1 analog HD output
S/N Ratio: | >62 dB
General
Operating Conditions: | -40 °C to 60 °C (-40 °F to 140 °F)
                                      Humidity: 90% or less (non-condensation)
Power Supply: | 12 V DC±15%
Power Consumption: | Max. 4 W
Protection Level: | IP66
IR Range: | Up to 20 m
Dimensions: | 89.47 × 67.6 mm (3.52" × 2.7")
Weight: | 340 g (0.75 lb.)

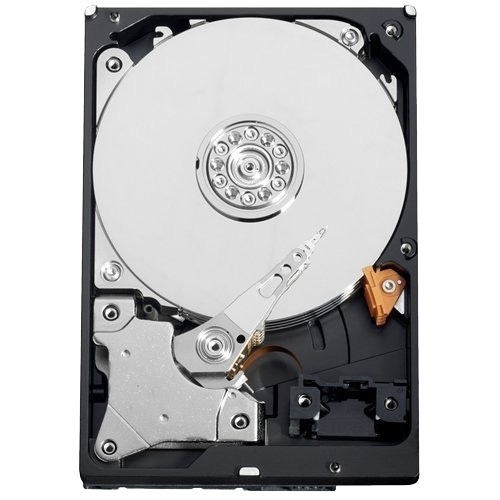

HD1TB específico para CCTV

Disco duro 1 TB - Interface SATA 6 Gb/s - Modelo WD10PURX - Fabricante Western Digital - Desenhado para oferecer máxima fiabilidade em streaming de Áudio/Vídeo de Alta Definição - Tecnologia AllFrame™ para reduzir erros de pixelação e interrupções de vídeo.



1 x DC12V5A ou 4 x DCA1206

1 alimentador 12 V DC 5 A ou 4 alimentadores para câmaras 12 V DC 0.62 A.
