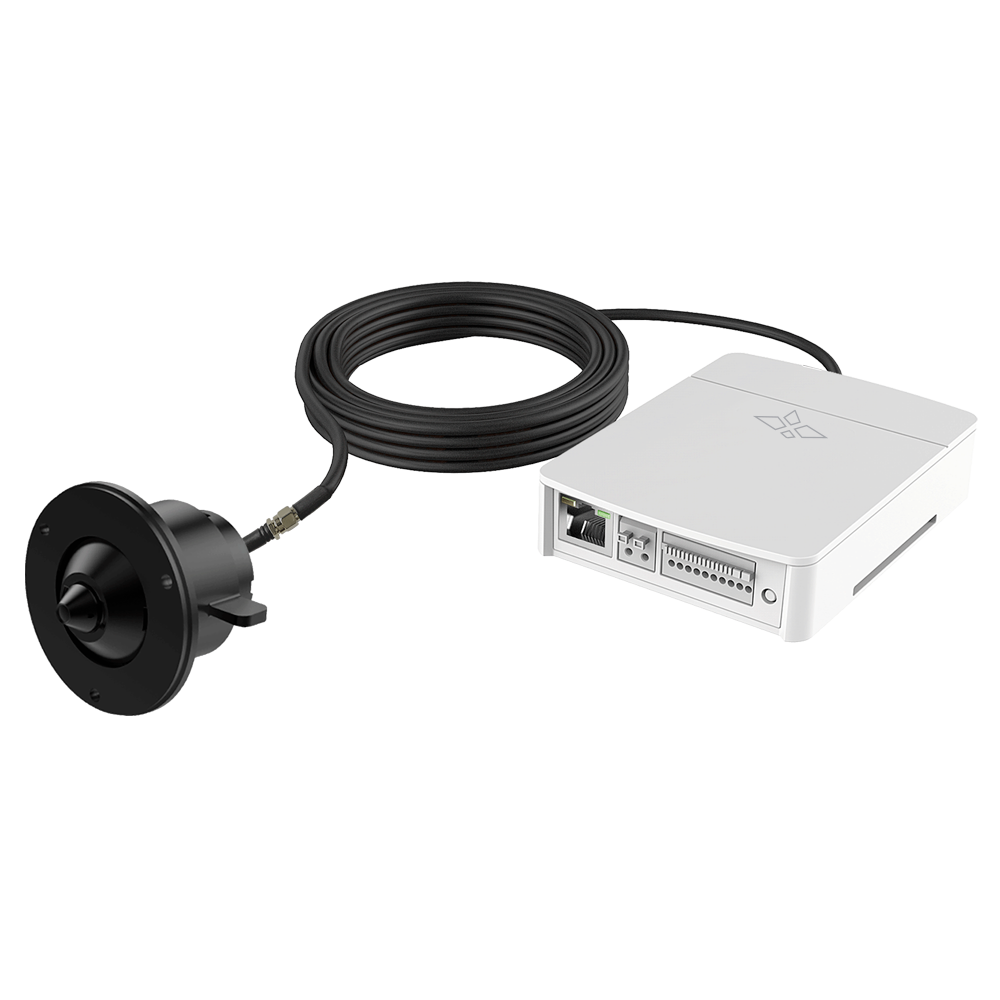

XS-IPMCKIT-4U-L1

XS-IPMCKIT-4U-L1

371,59 €
399,56 €
X-Security Pinhole Camera Kit - 4 Megapixel (2688x1520) | Lens 2.8 mm - WDR (120 dB) | 3D NR | Audio | Alarms - Capacity for 3 streams - Compression H.265+/H.265/H.264+/H.264 - PoE IEEE802.3af
Description
  • X-Security
  • IP Pinhole Camera Kit (Main box + sensor)
  • ULTRA Range
  • 1/2.7" Progressive Scan CMOS
  • 4 Megapixel (2688x1520)
  • 2.8 mm Pinhole Lens
  • Lens mounting M12
  • High sensitivity Starlight
  • Colour 0.005 Lux
  • WDR
  • 3DNR
  • Capacity for 3 streams
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • Perimeter protection, false alarm filter for vehicles and people
  • Face Capture: Compatible with facial recognition recorders
  • PoE IEEE802.3af
  • Audio
  • Alarms
  • SD card recording
  • Intelligent detection: faces, line crossing, intrusion, scene changes
  • WEB Interface, CMS (DSS/ PSS), Smartphone and NVR
  • ONVIF Compatible
Specifications
BrandX-SECURITY
Image sensor1/2.7" Progressive Scan CMOS
Maximum resolution4 Megapixel (2688x1520)
Lens2.8 mm (H: 109º)
XS-IPMC-4U-L1
Main Stream rate2592×1944 (1–20 fps), 2688×1520 (1–25 fps)
Extra Stream rateSub stream: 704×576, 704×480 (1–25 fps)
Third stream: 1920×1080 (1–25 fps)
Minimum illuminationColour 0.005 Lux @ F2.0
B/W 0.0005 Lux @ F2.0
Image improvementsWDR(120dB), ROI, AWB, 3DNR, MD, Mask, Mirror
CompressionH.265+/H.265/H.264+/H.264
Image improvementsBLC, HLC, DWDR, AWB, AGC, 3D-NR, MD, ROI, Mirror, Privacy Masking
Day / NightAutomatic electronic filter
Intelligent functionsFace detection, tripwire, area intrusion, scene changes & audio detection
Network interfaceEthernet 10/100 BaseT
Internal memorySD Card slot, Max. 128GB
Alarms2 Input / 2 Relay
Audio1 Input / 1 Output
Remote accessWEB, CMS (DSS/PSS), Smartphone and NVR interface
InteroperabilityONVIF
PowerDC 12 V / 5.1W mA, PoE IEEE802.3af
Temp. operation-40º C ~ 60º C
Degree of protectionInterior
Unit dimensionsModule: 110 mm (H) x 83 (W) x 24 (D) mm
Camera: 48.7 (H) x 30.5 (Ø) mm
Weight210 g
Contents
  • X-Security Main Box
  • Camera XS-IPMC-4U-L1
  • Installation material
  • User instructions
