XS-SW0604-96-DIN-HIPOE

XS-SW0604-96-DIN-HIPOE

69,75 €
75,00 €

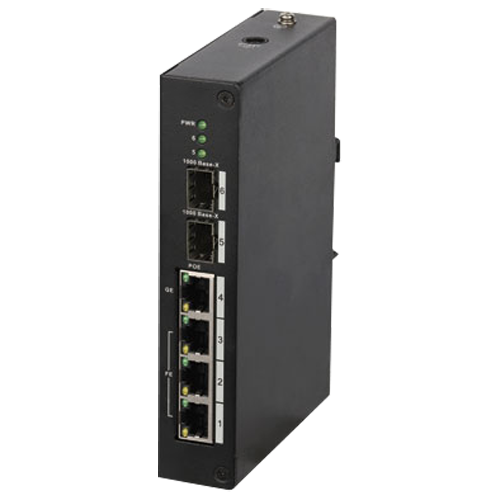

X-Security PoE Switch - 4 PoE ports + 2 SFP fiber ports - Speed 10/100Mbps - Port 60W 4 / ports 30W 1-3 / maximum 96W - Hi-PoE / IEEE802.3at (PoE+) / af (PoE+) - DIN rail mount
Description
  • X-Security
  • 4 ports RJ45 10/100 Mbps Hi-PoE + 2 ports Gigabit SFP
  • Supports PoE power supply up up 96W in total for all ports
  • Up to 60W in port 4 and up to 30W in ports 1, 2 and 3
  • Compatible with PoE IEEE802.3af/at and Hi-PoE
  • Din rail mounting
Specifications
Interface4 PoE ports RJ45 + 2 SFP fiber ports
Port speed3 x 10/100 Mbps + 1 x 10/100/1000 Mbps + 2 x 1000 Mbps Base-X
Power supplyUp to 60W (Hi-POE) in port 4 and up to 30W in ports 1 to 3 (96 W in total for the switch)
PoE featuresHi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE
InstallationDIN rail
PowerDC 48 V - 57 V
Operating temperature-10º C ~ 55º C
Dimensions85 (D) x 26 (H) x 130 (W) mm
Contents
  • X-Security PoE Switch
  • AC/DC Power adaptor
  • User instructions
