Contents
- Lock
- Euro cylinder with 4 keys
- Electromagnetic strike with sensor
- Installation material (Frames, screws, template)
- Installation manual

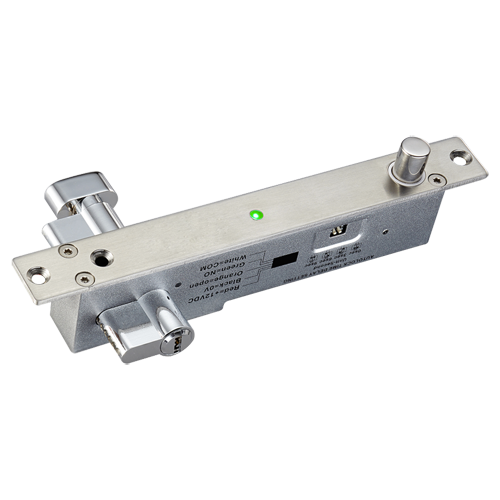

YB-500C-LED
67,16 €
72,22 €
72,22 €
Electromechanical safety lock - Fail Secure (NO) aperture mode - Retention force 1000 Kg - Door status sensor - Programmable self-closing - Euro Cylinder included (with keys)
Description
- Electro-mechanical Piston Security Lock (Bolt)
- Euro cylinder with 4 key(s) included
- NO Normally Open (Fail Secure)
- Timer with Delay of 0/3/6/9 seconds
- Open door signal
- Applicable in Fire protection systems
- It has status LED
- Installation in Wooden, Metal, Glass and Fire doors
- 12 VDC
Specifications
| Mounting | Built-in |
| Opening mode | Fail Secure (NO) |
| Locking delay time | 0, 3, 6 y 9 seconds |
| Retention force | 1000 Kg |
| Cylinder | Euro 37 x 37mm with eccentric cam |
| Power | DC 12 V / 960/180 mA start/standby |
| Open sensor | Integrated LED indicator, exit indicator. |
| Entrance profile | Narrow 23mm |
| Plate dimensions | 42 (D) x 210 (H) x 25 (W) mm |
| Dimensions | 90 (D) x 3 (H) x 25 (W) mm |
| Weight | 1000 g |
| Temperature | -40º C ~ +60º C |
