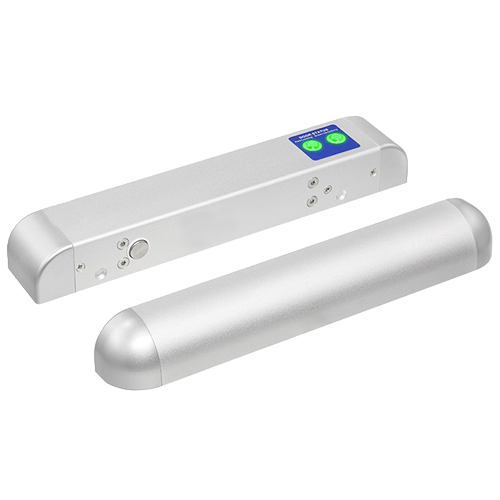

YB-500H-LED
49,57 €
55,08 €
55,08 €
Electric security lock - Fail Safe (NC) opening mode - Holding force 1000 kg | Door sensor - LED status indicator - Programmable self-closing - Selectable opening time
Description
Intelligent electric security lock
NC operation (Fail Safe)
Timer with adjustable delay
LED status indicator
Door sensor
Photoelectric control system
Mounting on wood, metal and glass doors
Made of aluminum alloy
12 VDC
Specifications
| Mounting | Surface |
| Opening mode | Fail Safe (NC) |
| Type of opening | Bidirectional |
| Locking delay time | 0, 3, 6 y 9 seconds |
| LED status indicator | Green (unlocked) / Red (locked) |
| Retention force | 1000 kg |
| Power | DC 12 V / 1 A max. (start) / 0.18 A max. (rest) |
| Door sensor | NO / COM |
| Plate dimensions | 45 (W) x 267 (H) x 35 (D) mm |
| Dimensions of the socket | 35 (W) x 267 (H) x 35 (D) mm |
| Temp. operating | -40º C ~ +60º C |
| Weight | 0.9 kg |
