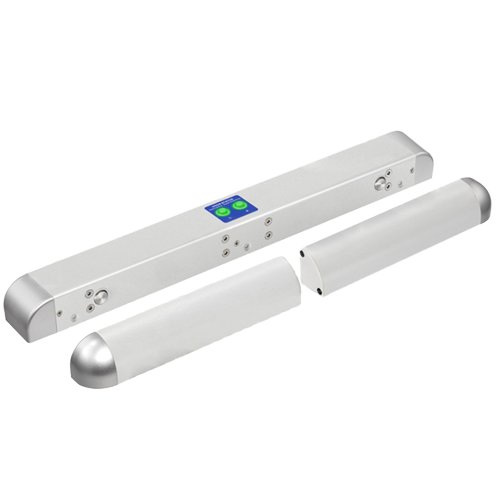

YB-500HD-LED

YB-500HD-LED

90,41 €
97,22 €
Double electric security lock - Fail Safe (NC) opening mode - Holding force 1000 kg | Door sensor - LED status indicator - Programmable self-closing - Selectable opening time
Description
  • Intelligent electric double security lock
  • NC operation (Fail Safe)
  • Timer with adjustable delay
  • LED status indicator
  • Door sensor
  • Photoelectric control system
  • Mounting on wood, metal and glass doors
  • Suitable for double doors
  • Made of aluminum alloy
  • 12 VDC
Specifications
MountingSurface
Opening modeFail Safe (NC)
Type of openingBidirectional (for double door)
Locking delay time0, 3, 6 y 9 seconds
LED status indicatorGreen (unlocked) / Red (locked)
Retention force1000 kg
PowerDC 12 V / 1 A max. (x2) (start) / 0.18 A max. (x2) (idle)
Door sensorNO / COM
Plate dimensions45 (W) x 428 (H) x 35 (D) mm
Dimensions of the socket35 (An) x 204 (Al) x 35 (Fo) mm (x2)
Temp. operating-40º C ~ +60º C
Weight1.8 kg
Contents
  • Electric lock
  • Installation material
  • User instructions
