Contents
- Electromagnet
- Magnetisation plate
- Installation material
- User instructions
YF-280AST-LED
30,59 €
32,89 €
32,89 €

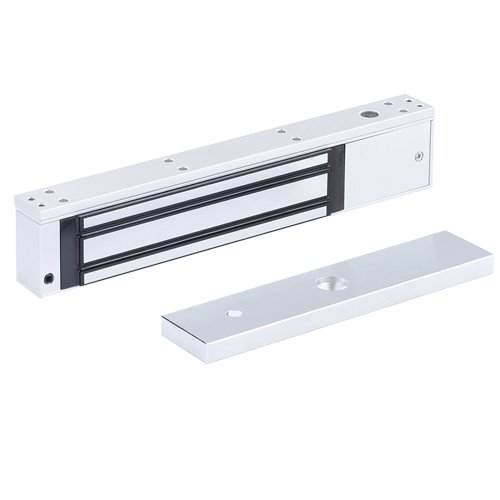

Electromagnetic door lock - For single doors - Fail Safe mode - Retention force 280 Kg - Door status sensor - Different compatible profiles
Description
- Electromagnetic lock for single doors
- Incorporates monitoring signal
- Output of contact NO/NC/COM
- It has status LED
- Linear load resistance 280 Kg
Specifications
| Door type | Single, 1 door |
| Time Delay Function | Available |
| Opening mode | Fail Safe |
| Retention force | 280 Kg |
| Power | DC 12 V/ 450 mA max. or DC 24V / 250mA max. |
| Signalling | Door status sensor NO/NC |
| Armature size | 38 (H) x 180 (W) mm |
| Dimensions | 26 (D) x 48.5 (H) x 250 (W) mm |
| Weight | 2100 g |
| Temperature | -10º C ~ +55º C |
