Electromagnet
Magnetisation plate
Installation material
User instructions

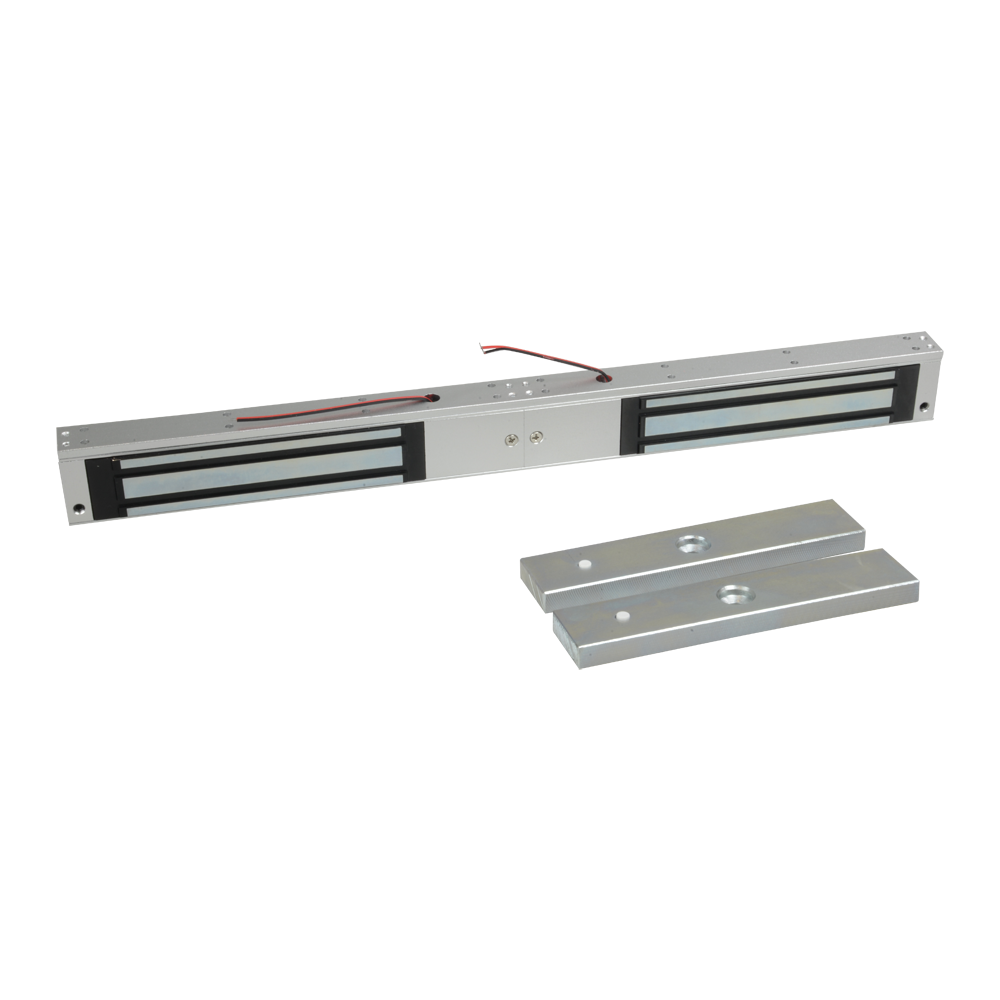

YF-280BST-LED
45,67 €
49,11 €
49,11 €
Electromagnetic suction cup - For double door - Fail Safe mode - Holding force 280 kg per suction cup - Door status sensor - Different compatible profiles
Description
Electromagnetic suction cup for double door
Incorporates monitoring signal
Contact output
NO/NC/COM
It has status LED
Linear load resistance of 280 kg per each suction cup
Specifications
| Door type | Double, 2 folding sheets |
| Time Delay Function | Available |
| Opening mode | Fail Safe |
| Retention force | 280 kg (per suction cup) |
| Power | DC 12 V / 520 mA máx. o DC 24 V / 260 mA max. |
| Signalling | Door status sensor NO/NC |
| Armature size | 38 (H) x 180 (W) mm (per suction cup) |
| Dimensions | 25 (D) x 48.5 (H) x 500 (W) mm |
| Weight | 4.2 kg |
| Temperature | -10º C ~ +55º C |
