YF-280W

YF-280W

22,94 €
24,67 €

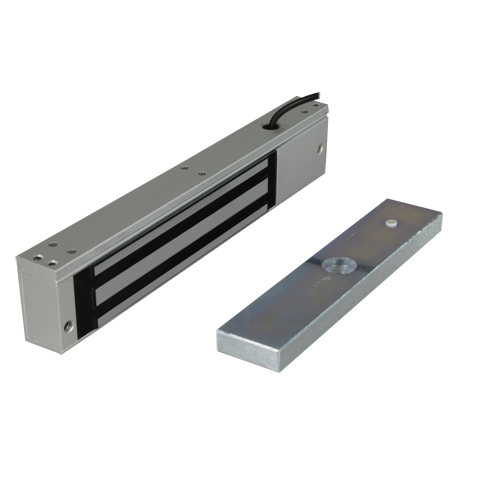

Electromagnetic door lock - For single doors - Fail Safe mode - Retention force 280 Kg - Retention Area 35 x 155mm - IP67 exterior rating
Description
  • Electromagnetic lock for single doors
  • NC / COM contact output
  • Linear load resistance 280 Kg
  • Exterior Maglock
Specifications
Door typeSingle, 1 door
Opening modeFail Safe
Retention force280 Kg
PowerDC 12 V / 24V / 500 mA
Armature size35 (H) x 155 (W) mm
Dimensions48.5 (D) x 25 (H) x 250 (W) mm
Weight2,5 Kg
Temperature-10º C ~ +55º C
ProtectionIP67
Contents
  • Electromagnet
  • Magnetisation plate
  • Installation material
  • User instructions
