Contents
- Electromagnet
- Magnetisation plate
- Installation material
- User instructions

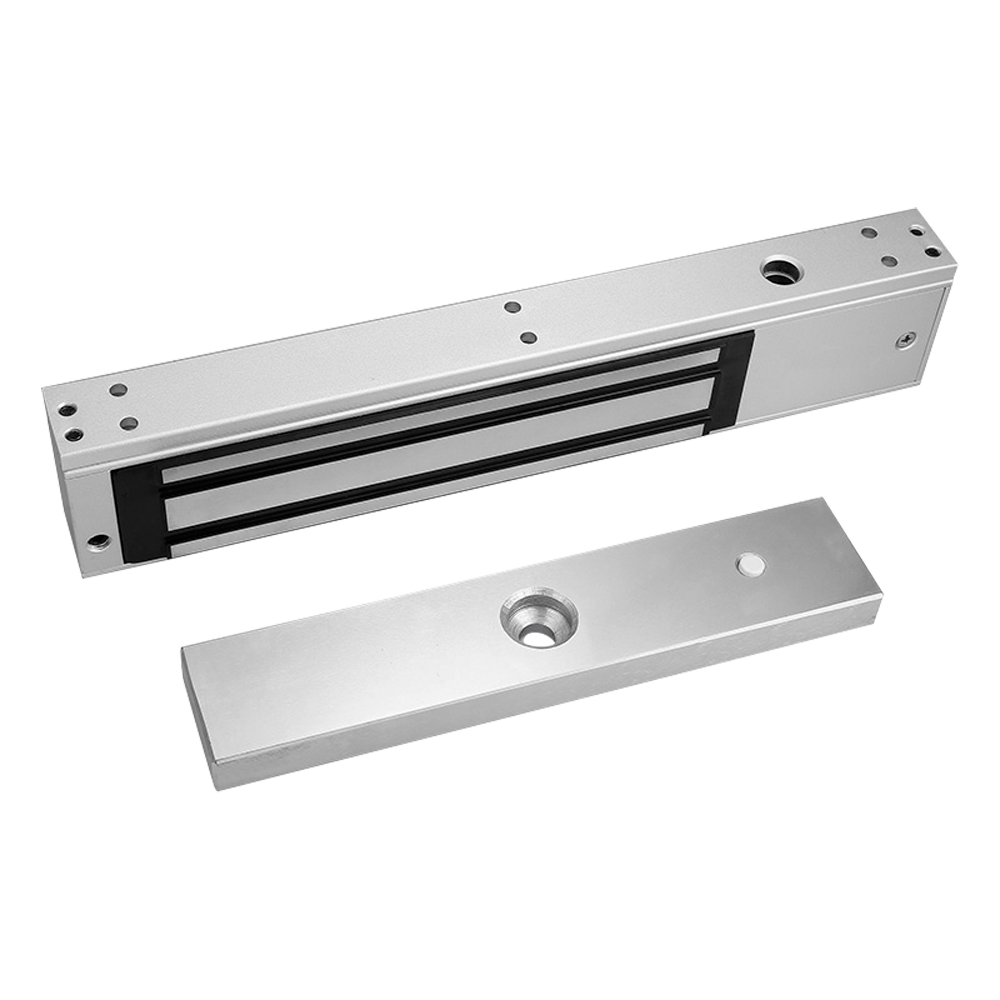

YF-500AW
44,33 €
47,67 €
47,67 €
Electromagnetic door lock - For single doors - Fail Safe mode - Holding force 500 kg - Retention Area 38 x 180mm - IP67 exterior rating
Description
- Electromagnetic lock for single doors
- NC / COM contact output
- Linear load resistance of 500 kg
- Exterior Maglock
Specifications
| Door type | Single, 1 door |
| Opening mode | Fail Safe |
| Retention force | 500 kg |
| Power | DC 12 V / 660 mA máx. o DC 24 V / 330 mA max. |
| Armature size | 38 (H) x 180 (W) mm |
| Dimensions | 39.5 (D) x 74.5 (H) x 265 (W) mm |
| Weight | 4.5 Kg |
| Temperature | -10º C ~ +55º C |
| Protection | IP67 |
