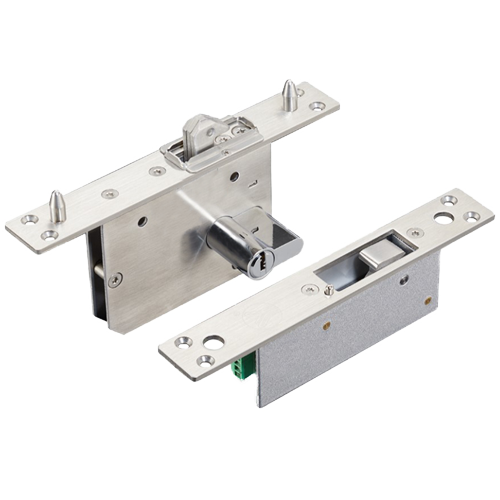

YSD-230
71,04 €
76,39 €
76,39 €
Electromechanical safety lock - Fail Secure and Fail Safe opening mode - Holding force 800 kg | Door sensor - Compatible with sliding doors - Stainless steel SUS304 - European cylinder included with keys
Description
Electromechanical hook security lock
European cylinder with keys included
NO (Fail Secure) and NC (Fail Safe) operation
Door sensor
Mounting on wood, metal and glass doors
Suitable for sliding doors
Made of stainless steel SUS304
12 VDC
IP55 and anti-vandal protection
Specifications
| Mounting | Built-in |
| Opening mode | Fail Secure (NO) and Fail Safe (NC) |
| Type of opening | Slider |
| Retention force | 800 kg |
| Cylinder | European |
| Power | DC 12V / 240 mA max. (NO) / 200 mA max. (NC) |
| Door sensor | NC / NO / COM |
| Plate dimensions | 26 (W) x 170 (H) x 93 (D) mm |
| Dimensions of the socket | 26 (W) x 170 (H) x 39.5 (D) mm |
| Temp. operating | -40º C ~ +60º C |
| Weight | 1.5 kg |
| Protection | IP55 / Antivandalism |
