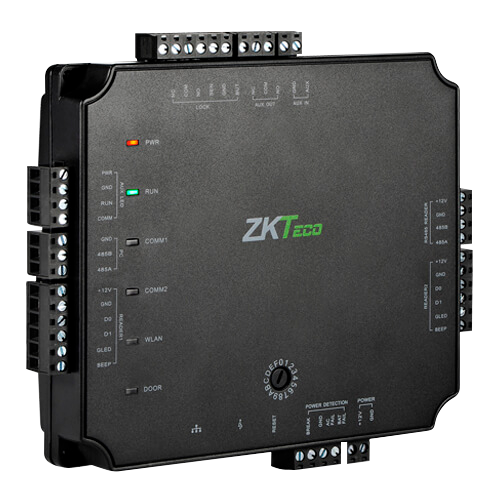

ZK-ATLAS-100

ZK-ATLAS-100

229,36 €
246,62 €
PoE Access Controller - Access with card or password - TCP/IP | Connection to slave controller - 2 Wiegand inputs | 1 OSDP input | Aux. - Relay output for 1 door and aux. - Embedded ATLAS Series software and mobile app
Description
  • ZKTeco
  • RFID access control panel
  • Management of 1 door
  • Capacity 5.000 users and 10.000 records
  • Supports up to 2 Wiegand readers or 2 OSDP readers (card reader)
  • TCP/IP, Wiegand and OSDP communication
  • Standard PoE power supply
  • Input for 1 pushbutton, 1 door sensor and 1 auxiliary input
  • 1 relay output and 1 auxiliary
  • Relay configuration NO/NC
  • Integrated ATLAS Series software
  • Web browser access to software for access control management and reports
  • ZK ATLAS mobile app for remote management of users, events, alarms and open remotely
  • Connection of ATLAS slave controllers with access from a single IP to 84 gates
  • Free license up to 25 gates
Specifications
BrandZKTeco
ModelCON-ATLAS-100
CapacityUp to 5.000 users
Records10.000 registers
Identification modesCard and/or password
Proximity cardEM RFID (125 kHz) / MF (13.56 MHz)
CommunicationTCP/IP | RS485 | OSDP | Wiegand
Baud rate9.600bps for OSDP
Outputs1 x relay output, 1 x auxiliary output
Inputs2 x Wiegand 26/34/37/50, 1 x door sensor, 1 x opening button, OSDP (up to 2 readers), 1 x auxiliary
Advanced featuresAnti-passback, first card, multi-card and maps
SoftwareATLAS Series embedded with browser-based access
LanguagesEnglish, German, Spanish, French, Italian, Portuguese, Polish, Turkish, Romanian, Norwegian, Czech
Secondary controllersConnection of up to 20 secondary controllers via IP with a control of up to 84 doors
Compatible web browsersGoogle Chrome, Mozilla Firefox, Microsoft Edge
Mobile AppZK ATLAS for iOS and Android
PowerDC 12 V / 3 A max | PoE power supply standard | Locks not powered with controller
Temp. operation0º C ~ +55 C
Dimensions197 (W) x 171 (H) x 30 (D) mm
Contents
  • ZKTeco Access Controller
  • Mounting material
  • User instructions
