ZKTeco Access Controller
Mounting material
User instructions
ZK-INBIO160PRO
166,57 €
179,11 €
179,11 €
Biometric access control panel - Access by fingerprint, card or password - TCP/IP communication | RS485 - 2 Wiegand inputs | 1 input RS485 - Relay output for a door - Softwares ZKBioAccess / ZKBio CVSecurity
Description
ZKTeco
Biometric access control panel
Management of 1 door
Capacity 20.000 users and 100.000 records

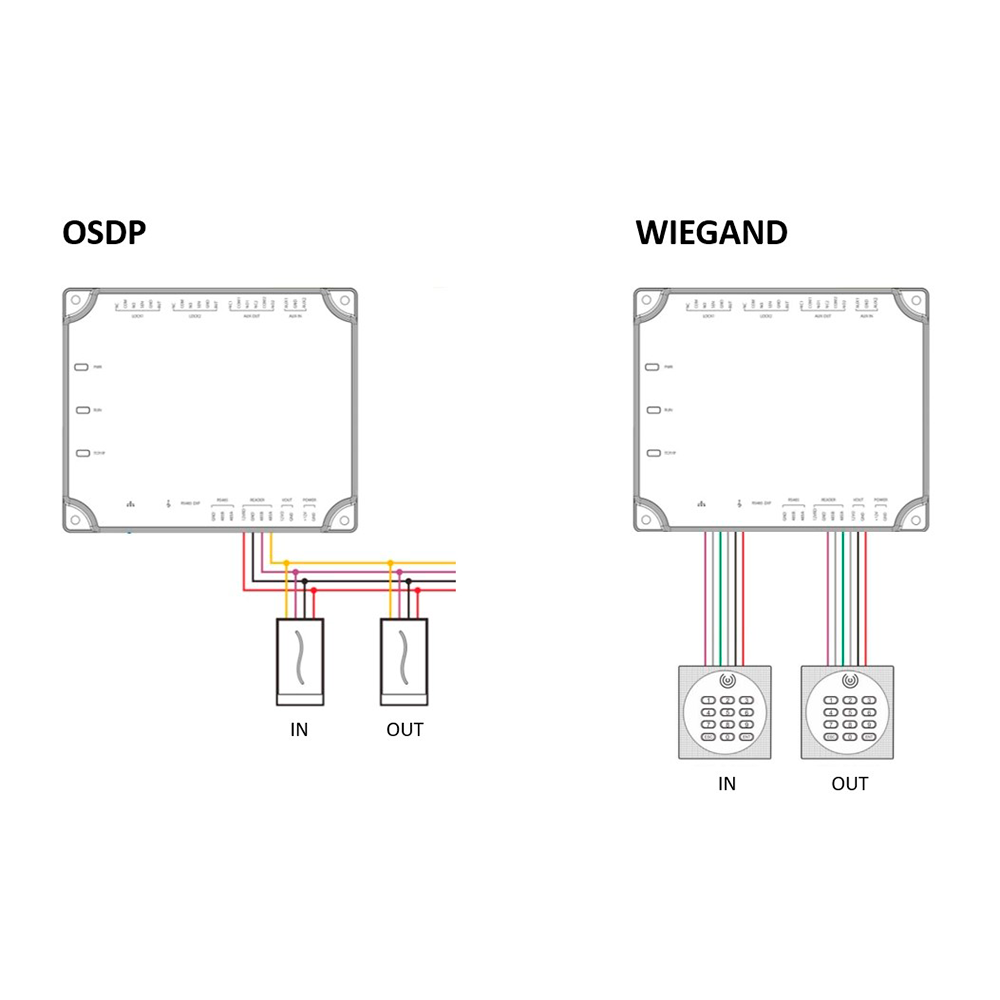

Supports up to 2 Wiegand readers and 2 RS485 readers
TCP/IP communication and RS485
Input for 1 pushbutton, 1 door sensor and 1 auxiliary input
1 relay output and 1 auxiliary
Relay configuration NO/NC
Compatible with ZKBioAccess IVS software for access control management
Compatible with ZKBio project software CVSecurity
Specifications
| Brand | ZKTeco |
| Model | GL-INBIO-PRO160 |
| Hardware CPU | 32bit 1.2GHz CPU |
| Capacity | Up to 20.000 tracks or 60.000 cards |
| Records | 100.000 registers |
| Identification modes | Fingerprint, card and/or password |
| Proximity card | EM RFID (125 kHz) / MF (13.56 MHz) |
| Communication | TCP/IP | RS485 | Wiegand |
| Baud rate | 9.600bps, 19.200bps, 38.400bps (recommended) and 57.600bps |
| Outputs | 1 x relay output, 1 x auxiliary output |
| Inputs | 2 x Wiegand 26/34, 1 x door sensor, 1 x open button, RS485 (up to 2 readers), 1 x auxiliary |
| Software | ZKBioAccess IVS / ZKBio CVSecurity |
| Power | DC 9.6 ~ 14.4 V / 1 A max. |
| Temp. operation | 0º C ~ +55 C |
| Dimensions | 350 (W) x 300 (H) x 90 (D) mm |
| Weight | 300 g |
